Miller Stroke Master Part Numbers and Descriptions Below:

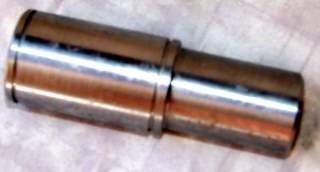

Out Board Can Holder Shaft (stm00806)

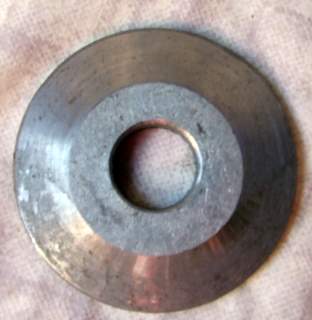

Locking Lever Washer (stm00841-washer)

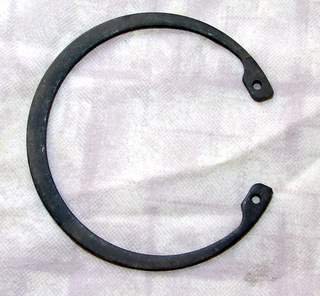

Internal Snap Ring (stm00804)

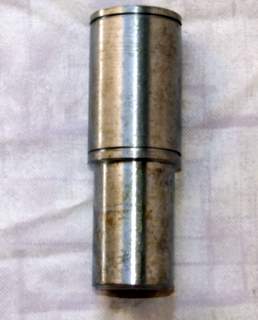

Inboard Can Holder Shaft (stm00805)

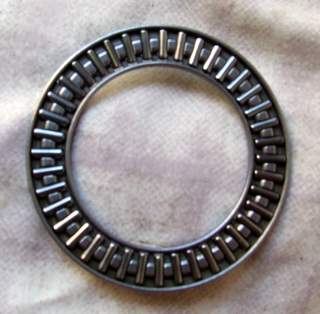

Outboard Beedle Thrust Bearing Washer(stm00829)

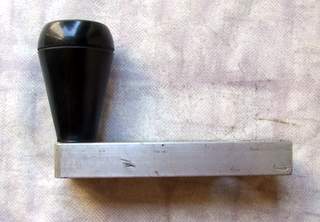

Handle for Pressure Plate(stm00319)

Fly Wheel Shaft (stm00807)

Crossbar(stm00898)

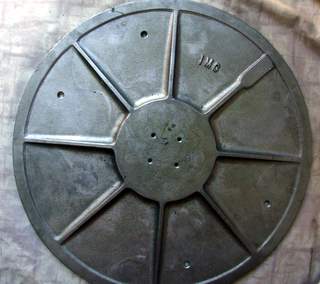

Pressure Plate Assembly (stm80201)

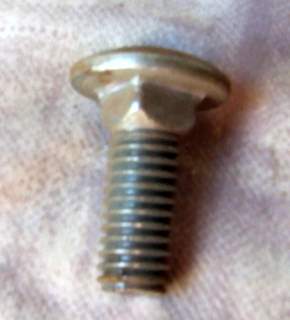

Carrige bolt (stm00819)

Can Holder Side Plate Outboard (stm00825)

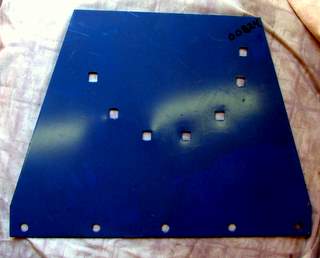

Can Holder Side Plate Assembly Inboard(stm00824)

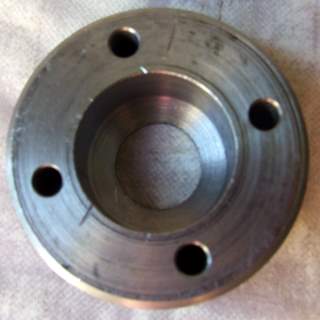

Pressure Plate Pad Retainer(stm00849)

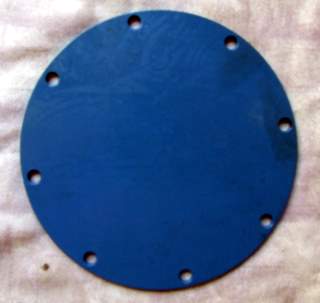

Bearing Cover Plate (stm00832)

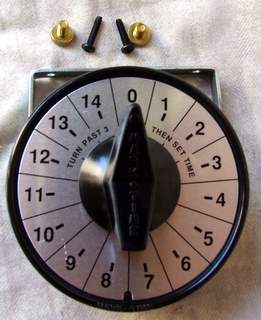

15min Timer (stm00859)

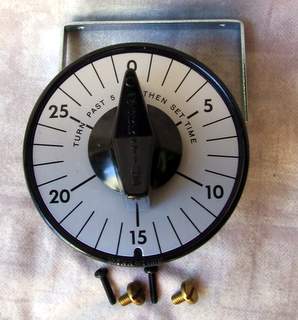

30min Timer (Stm0085930)

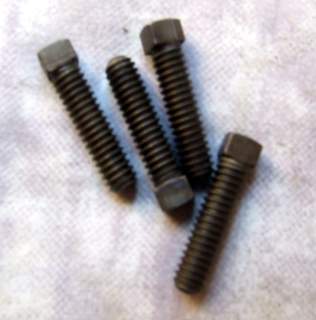

Screws For Handle (stm00869)

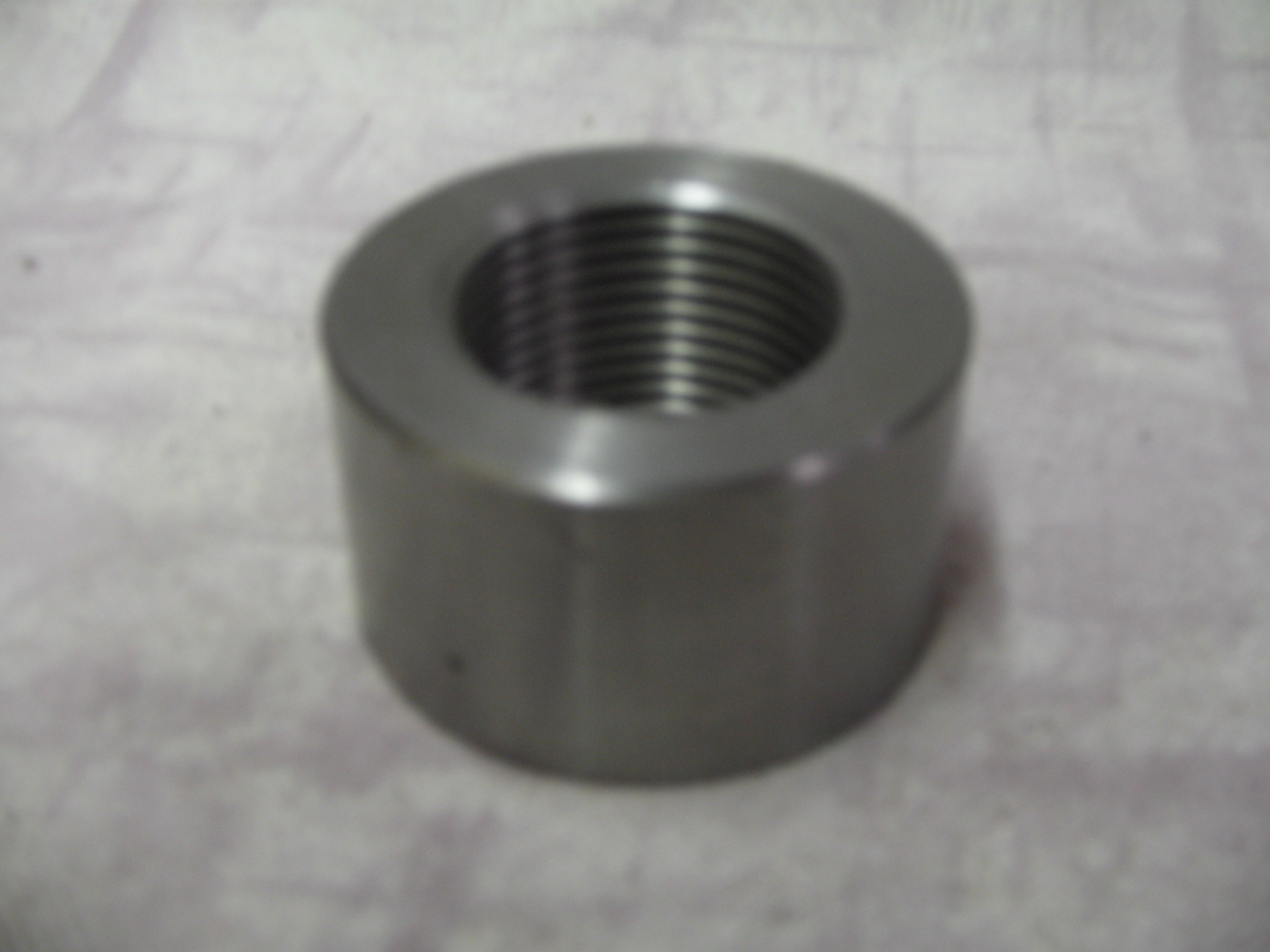

Clutch 1/2, Driven (stm00809)

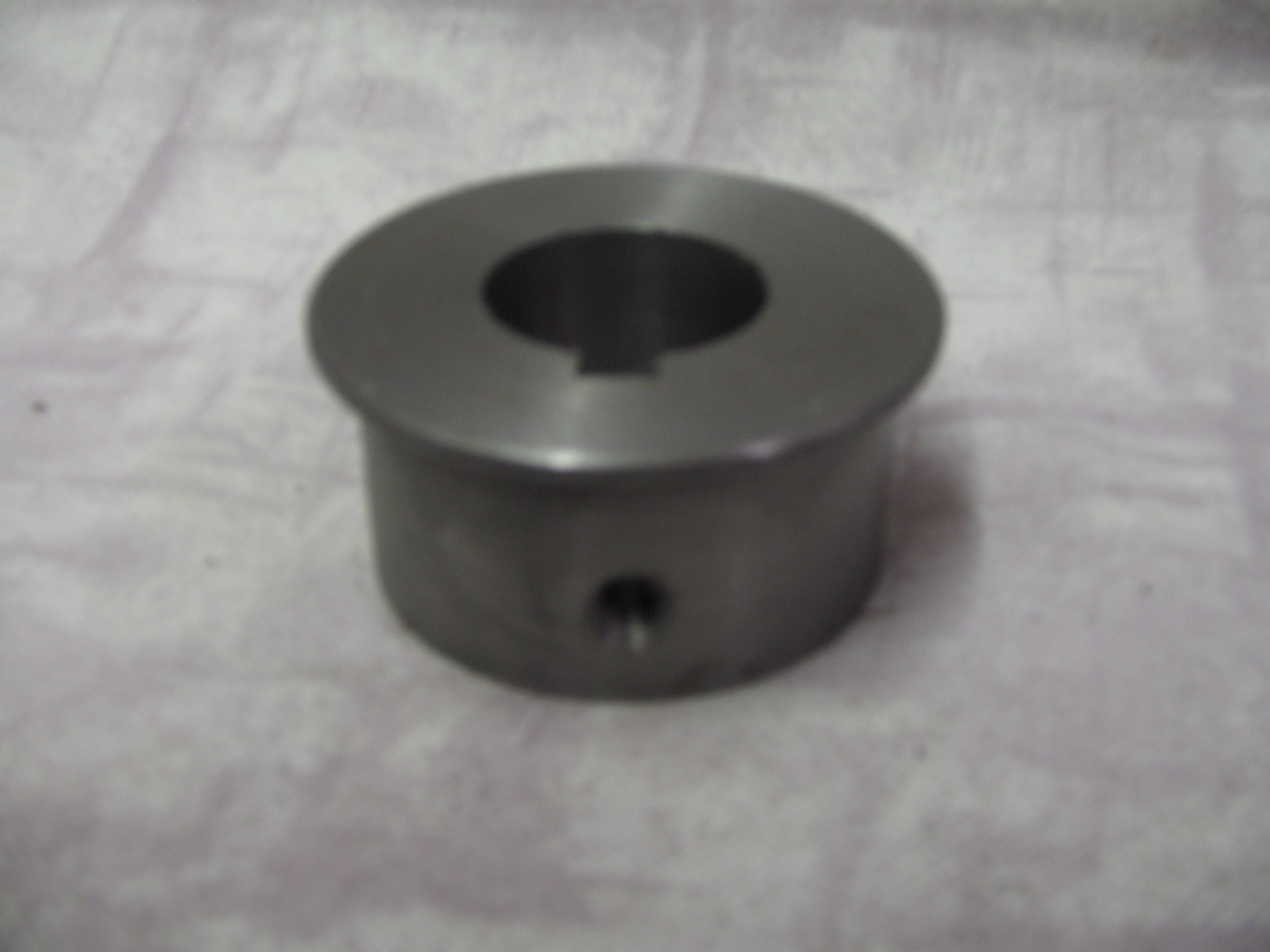

Clutch 1/2, Driver (stm00810)

Timer Housing Bracket(stm0074i)

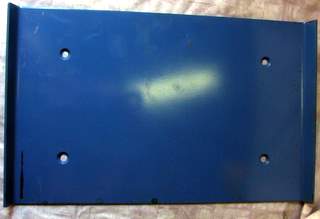

Speed Reducer (stm00842)

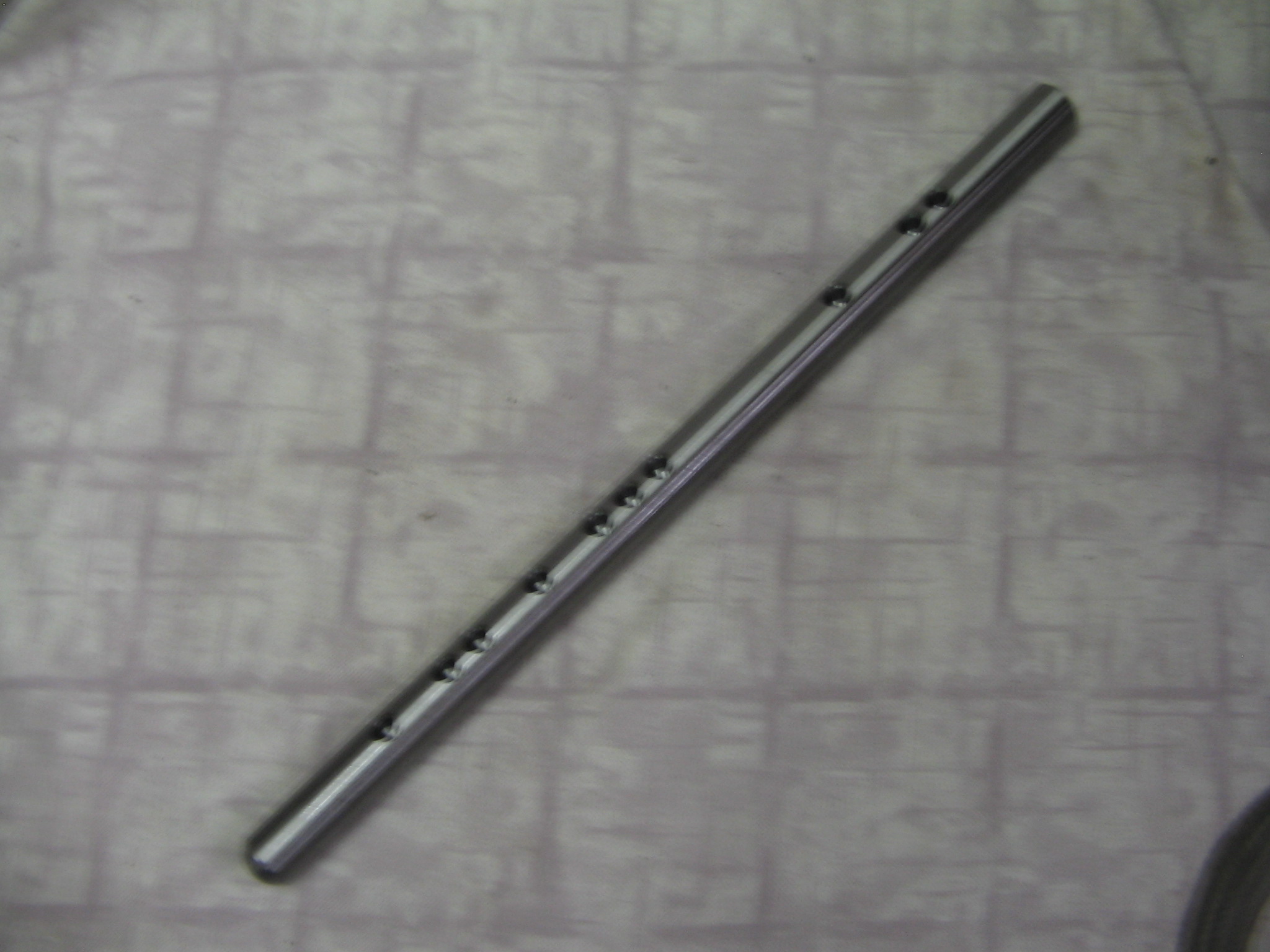

Can Holder Lock Rod (stm00877)

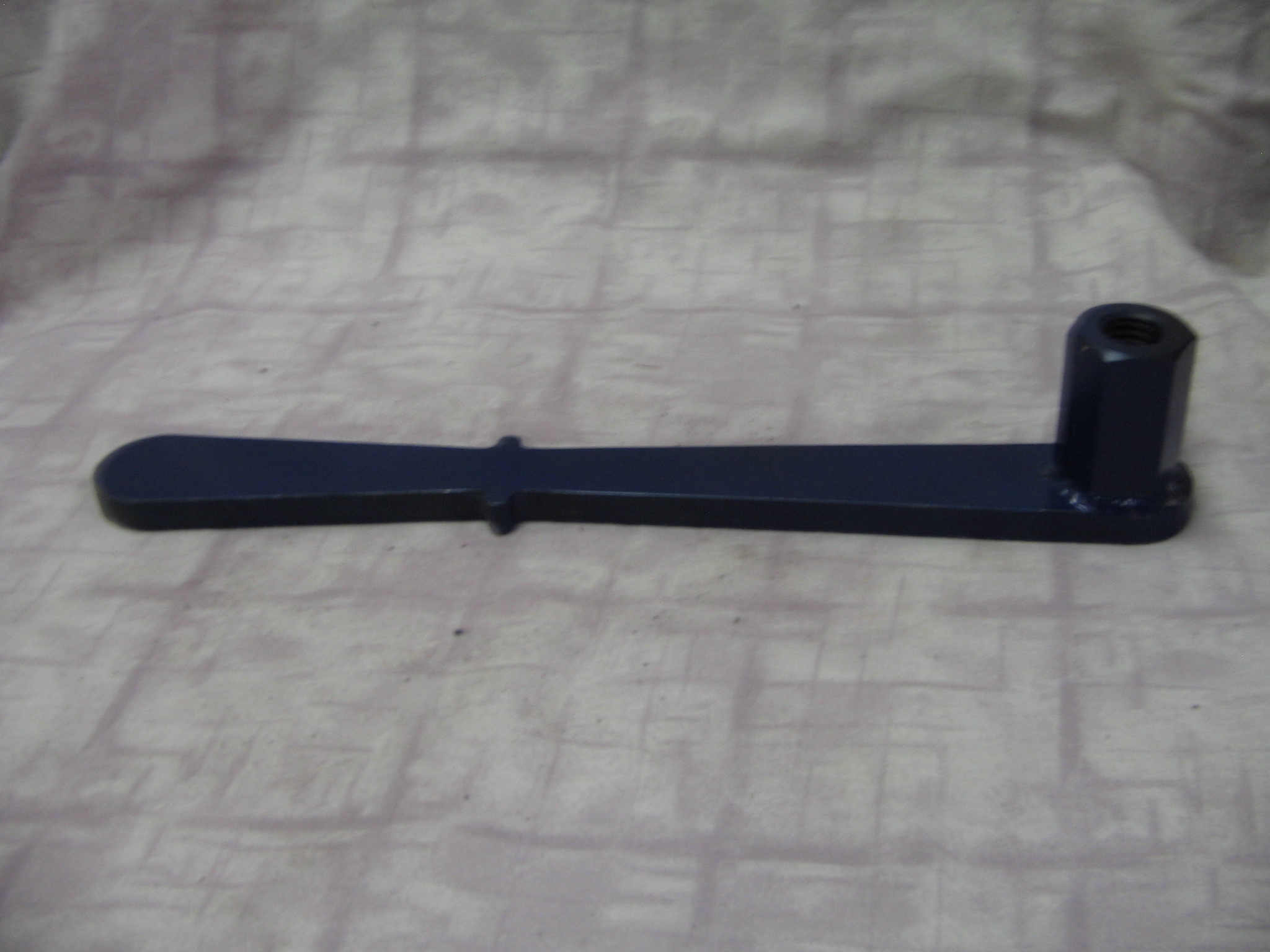

Locking Lever(stm00823-other)

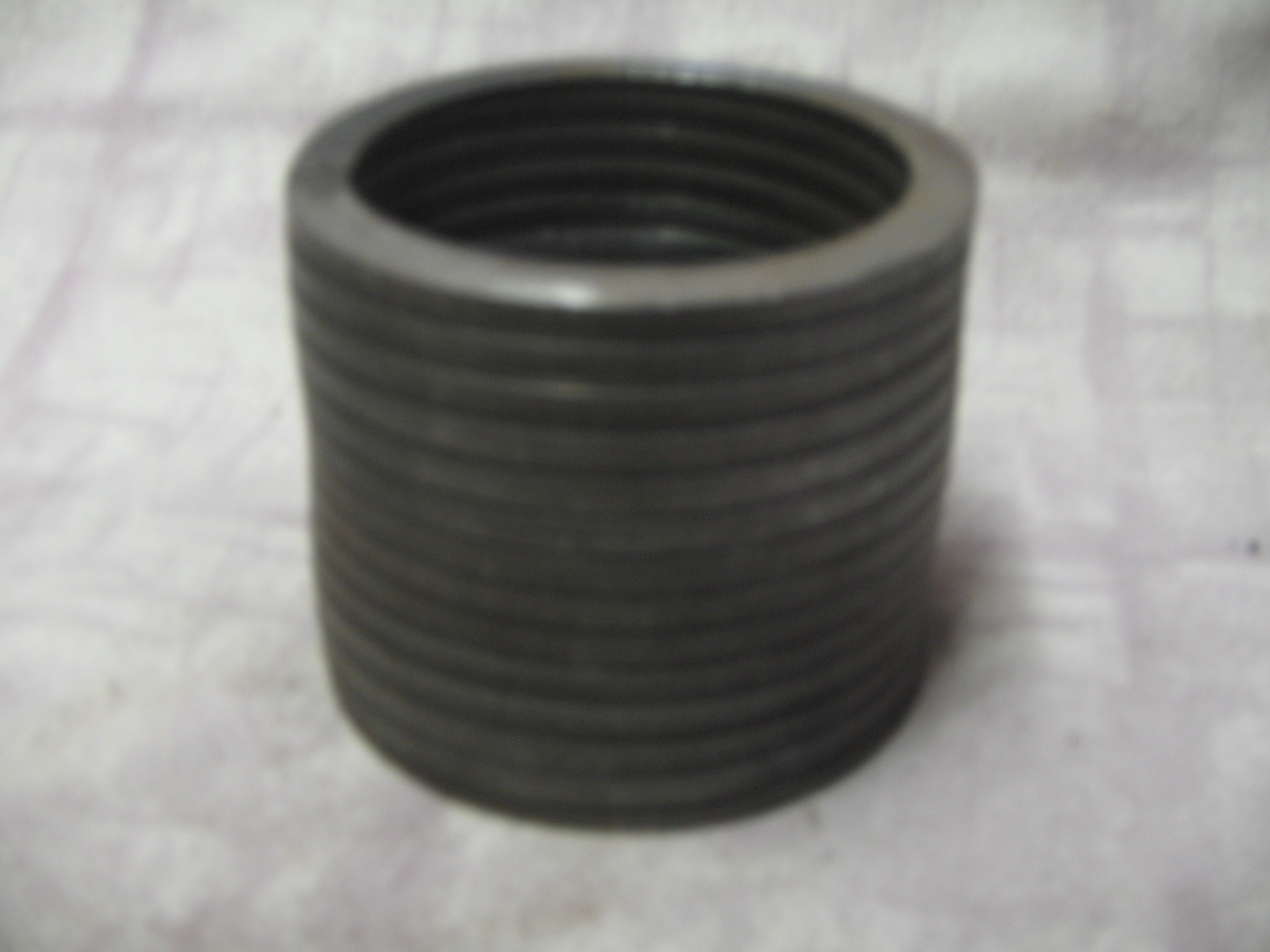

Clutch Spring (stm00808)

Spring Plunger (stm00881)

Locking Plunger Thumb Screw(stm00879-other)

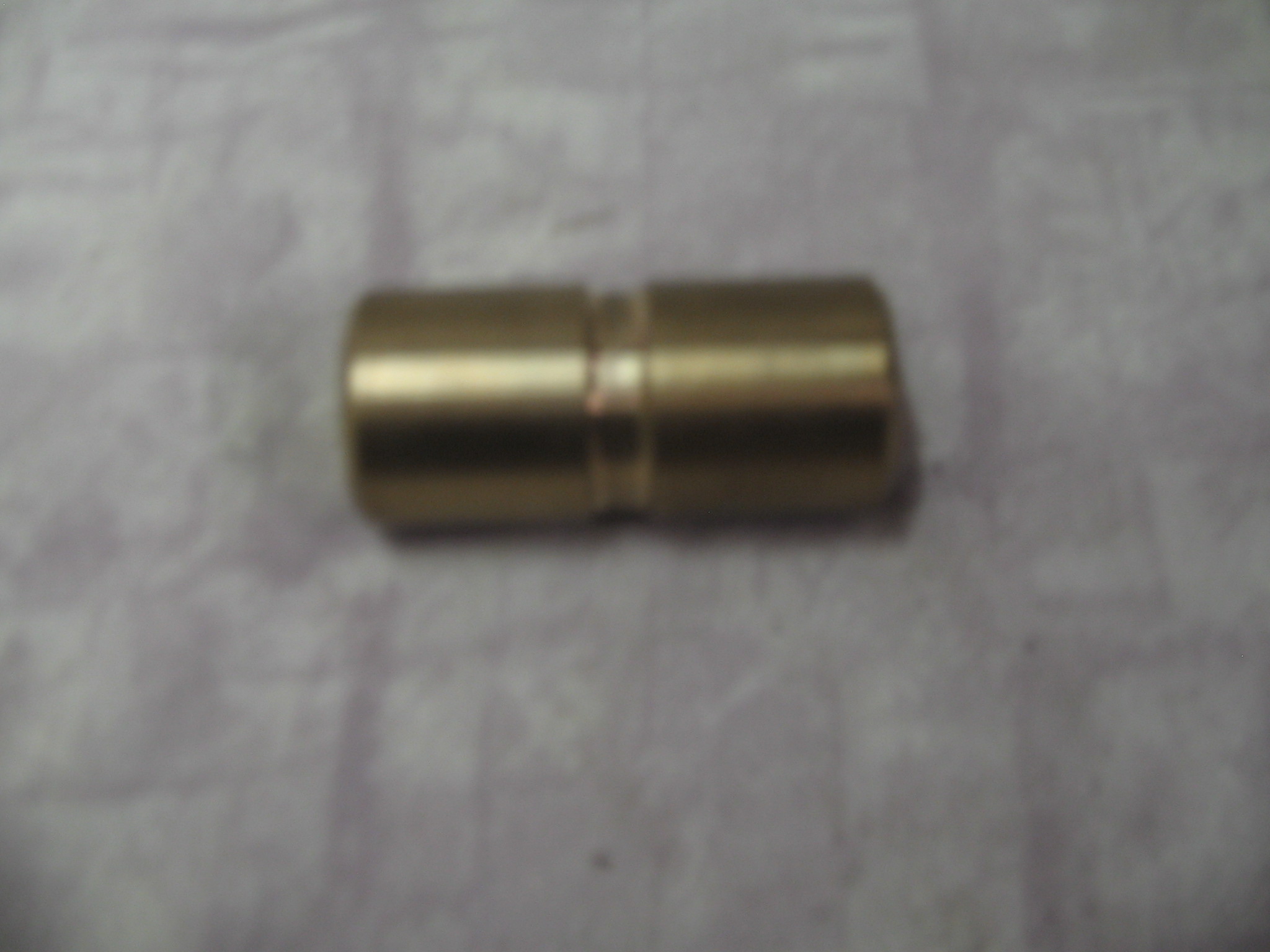

Bronze Wrist Pin(stm00840)

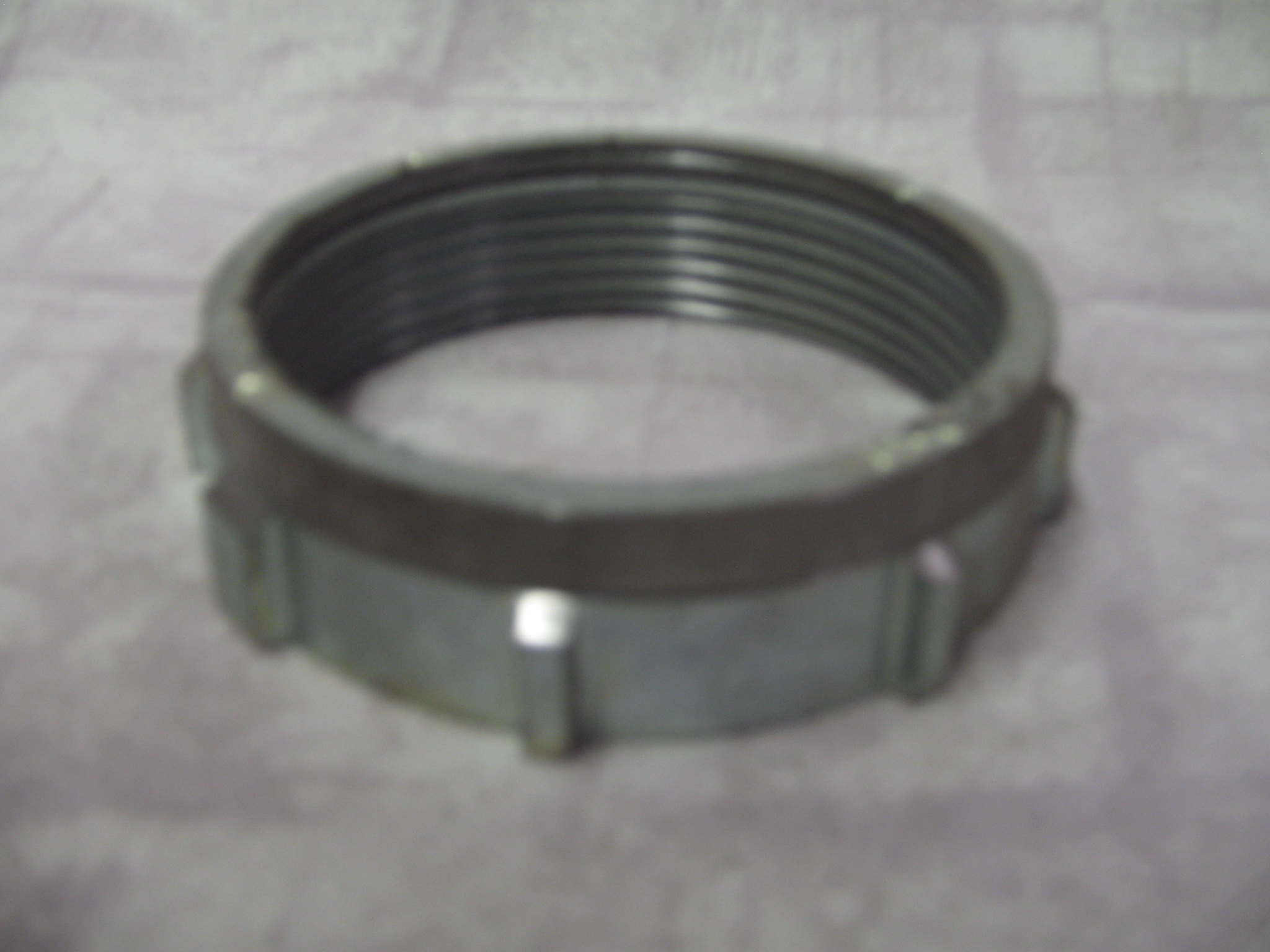

STM 1MC Slip Clutch(stm808sc)

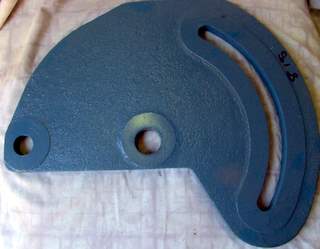

Pivot Plate (stm00818)

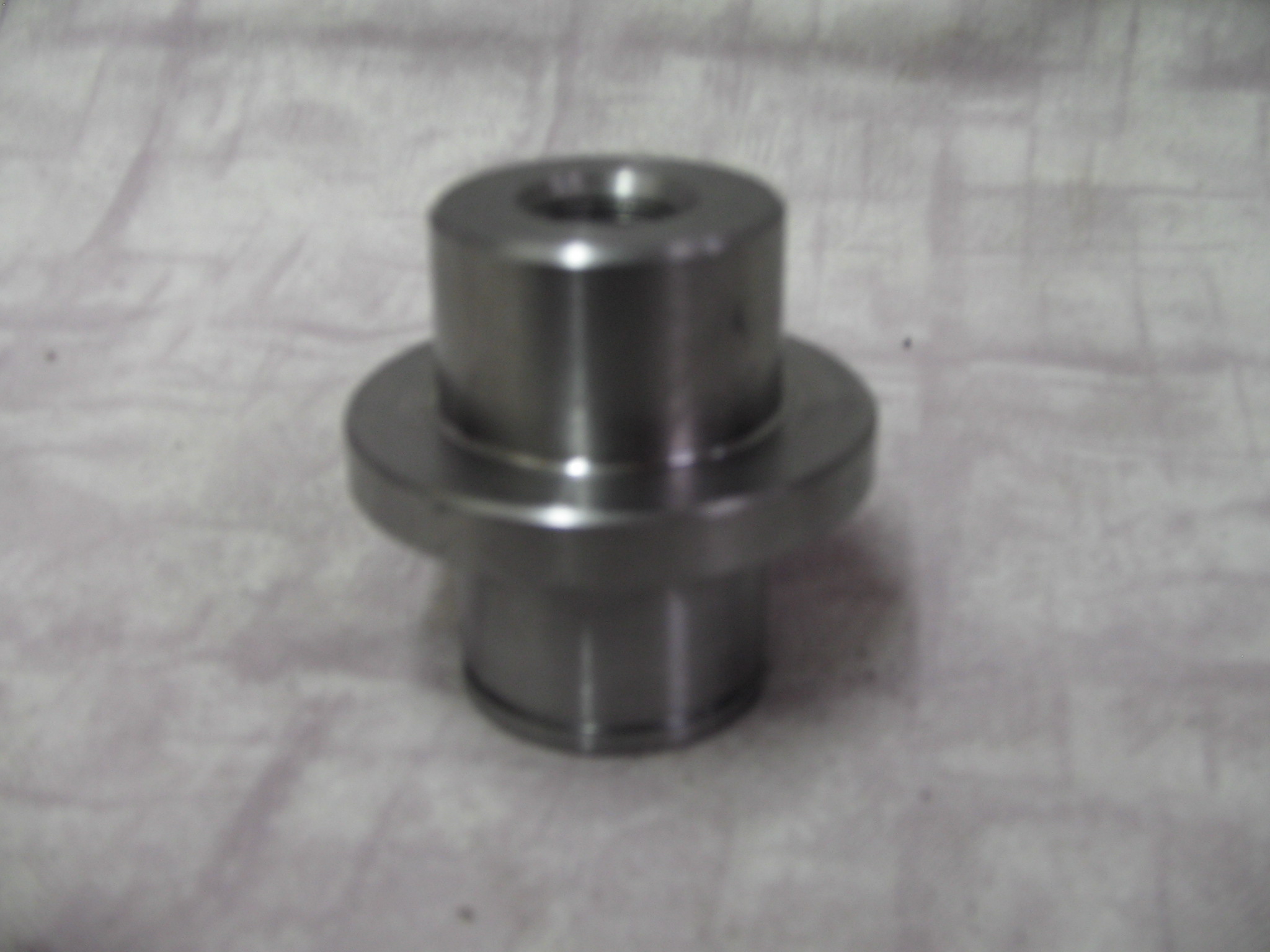

Fly Wheel Shoulder Bushing(stm00833)

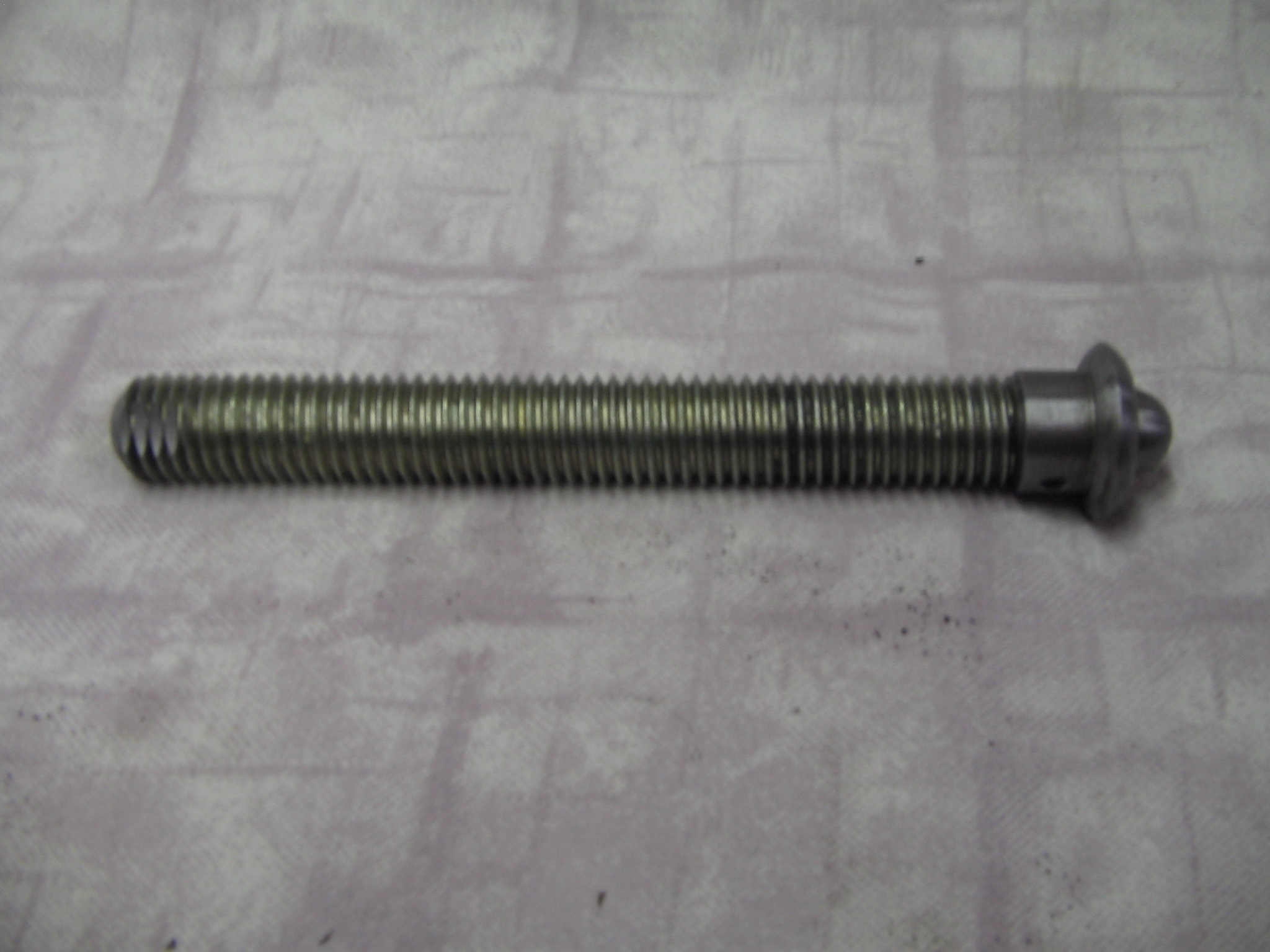

Thereaded Rod with Collar(stm80102-tr-other)

Can Clamp Pivot Plate(stm00803)

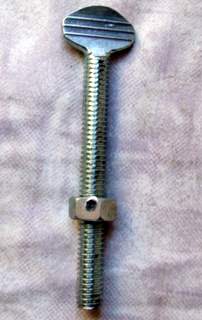

Thumb Screw Locking Assembly(stm80101)

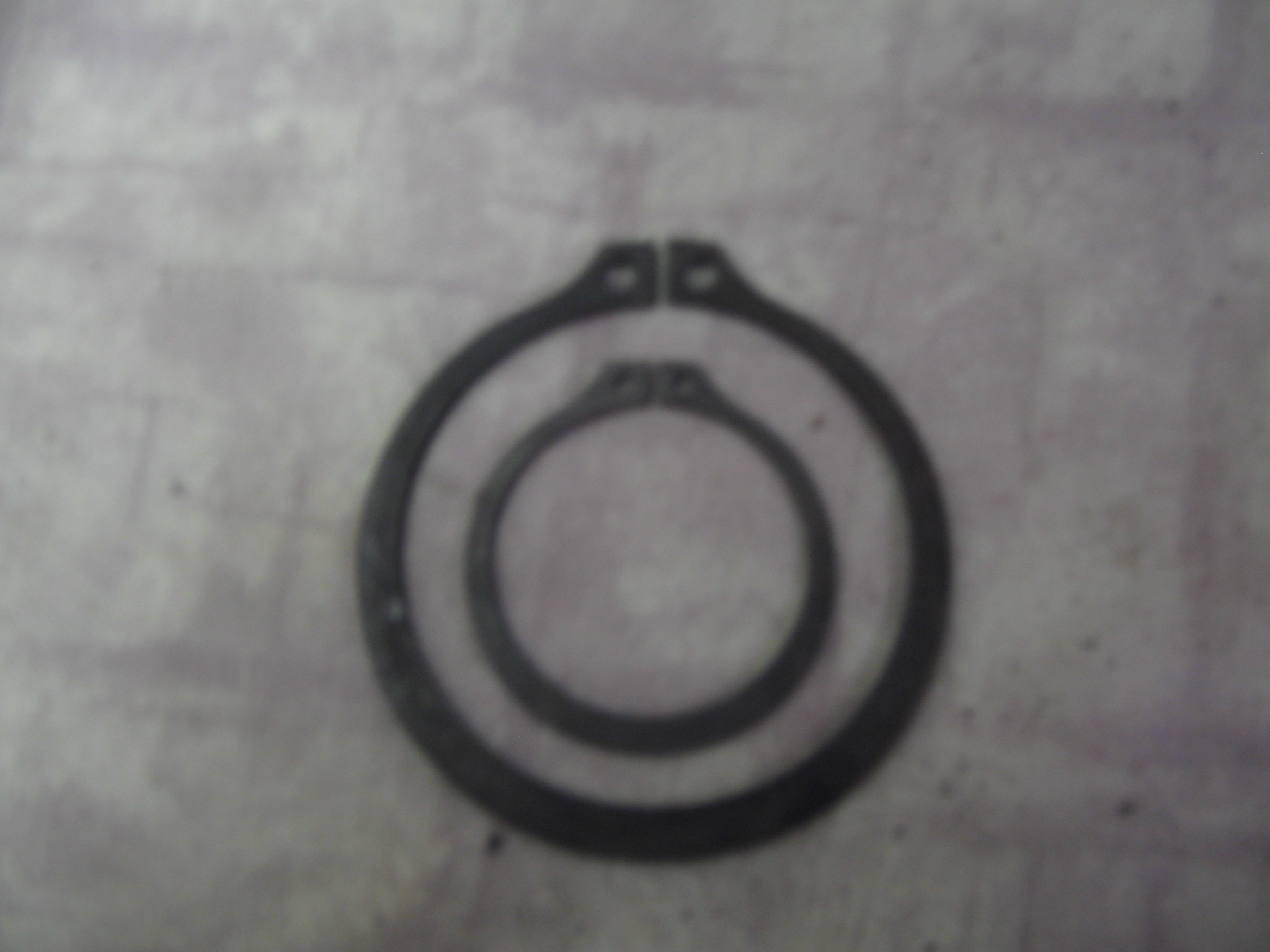

Retaining Ring Bearing in Board and Outboard (stm008434,stm00835)

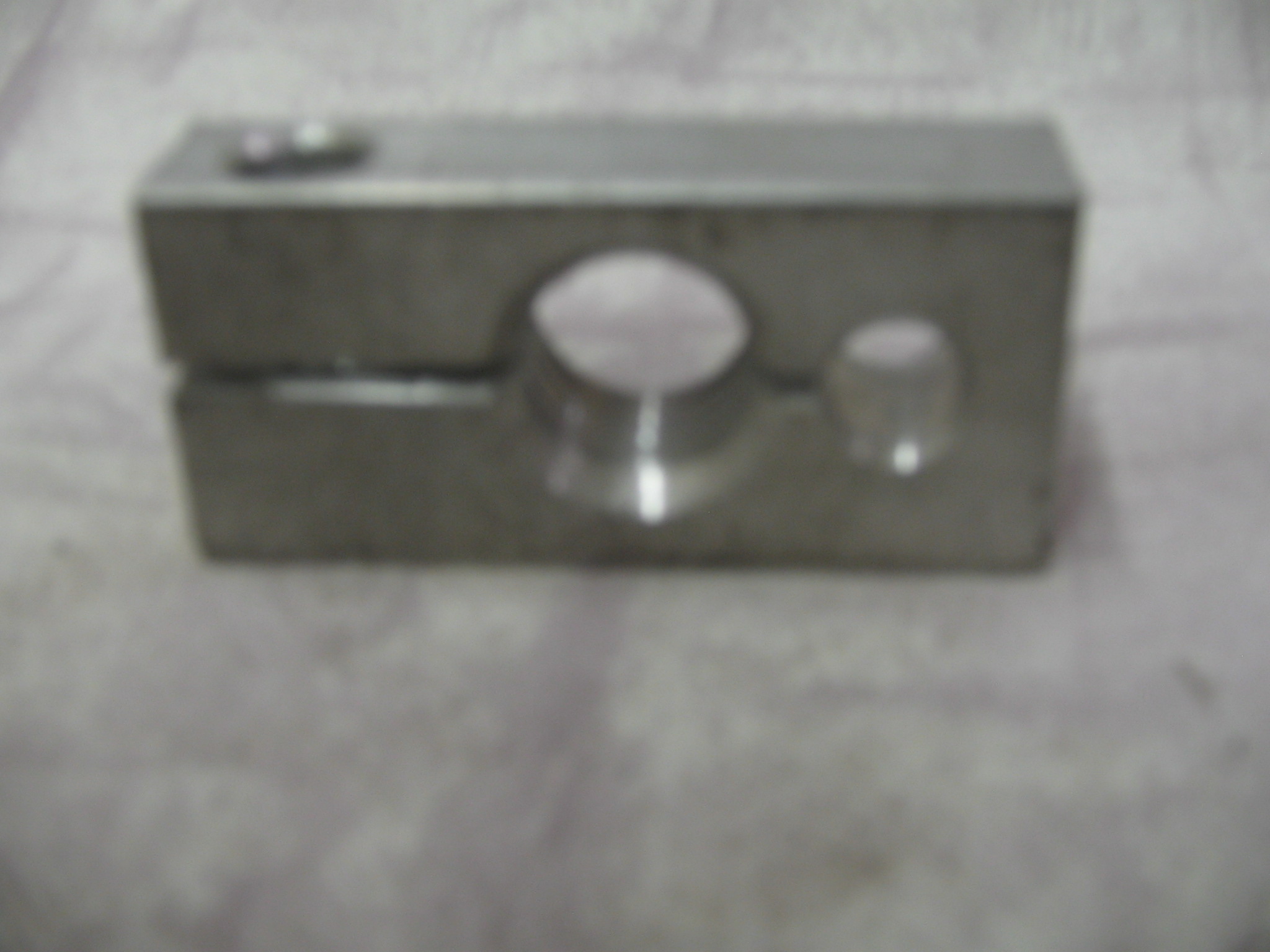

Locking Split Nut (STM00357)

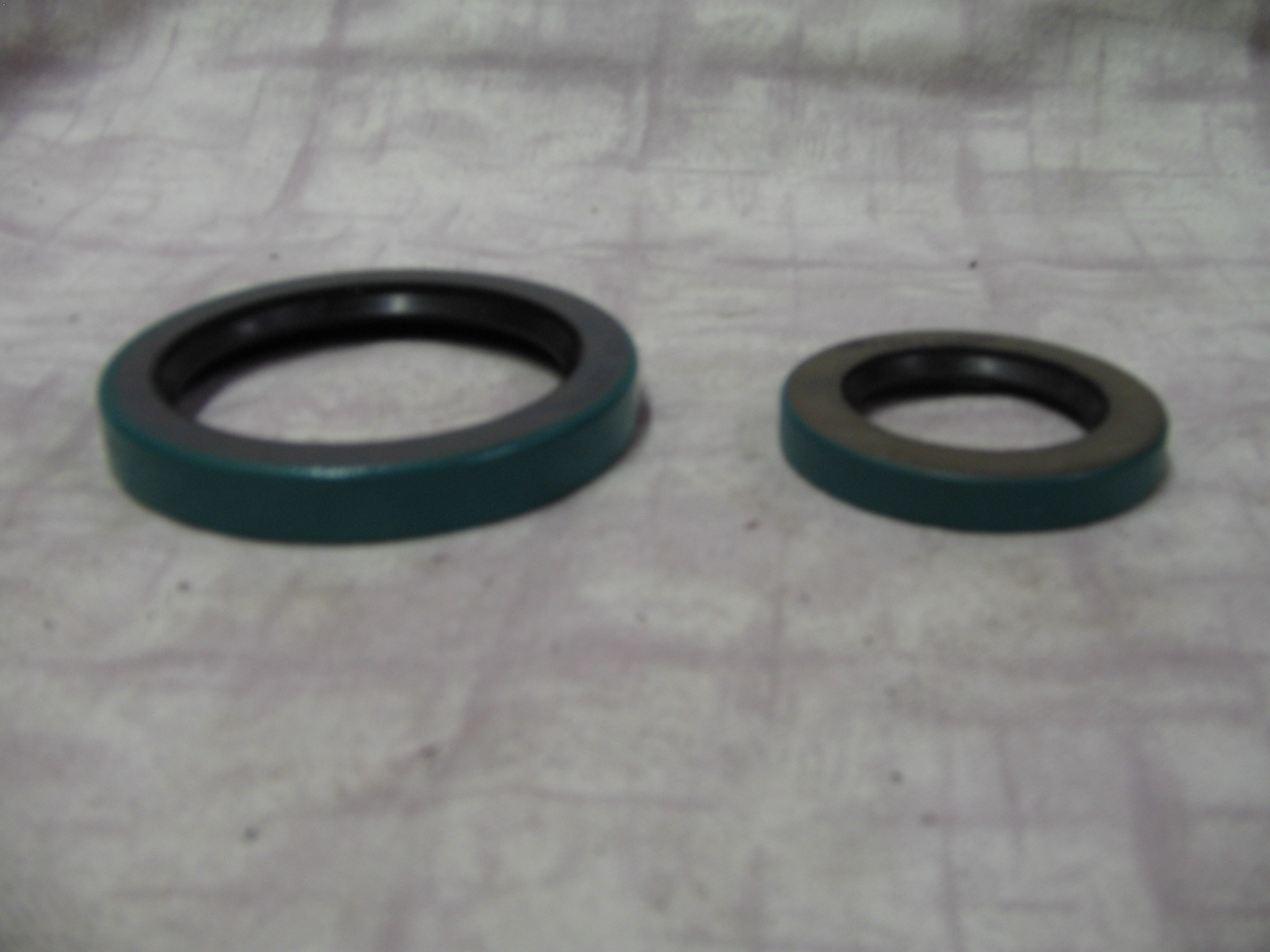

Oil Seals (stm00814and815)

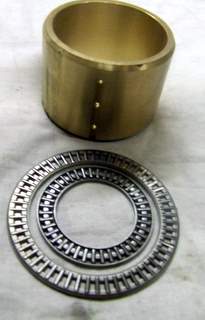

STM Bearing Set

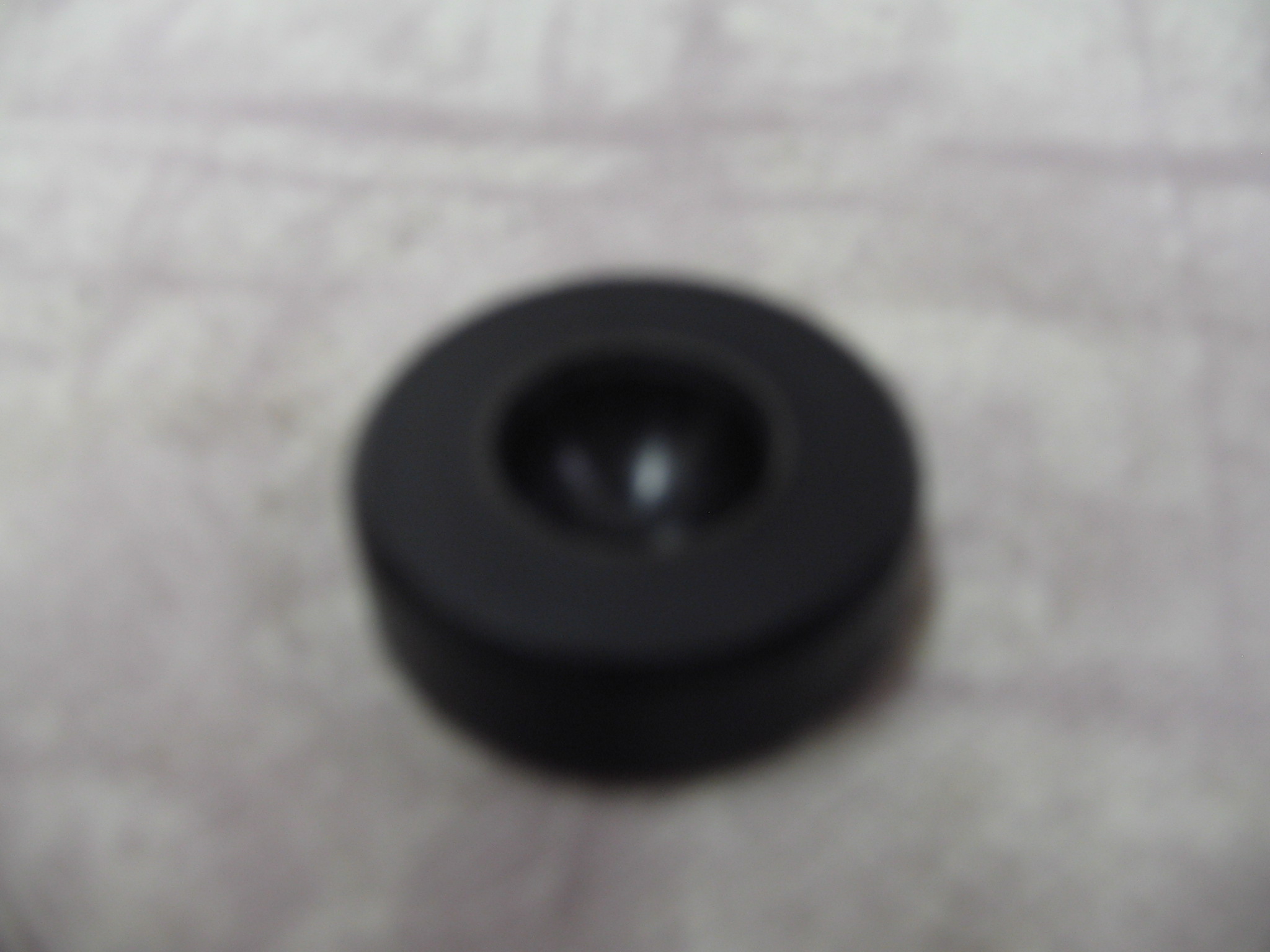

Thereaded Rod Pad(STM00888)

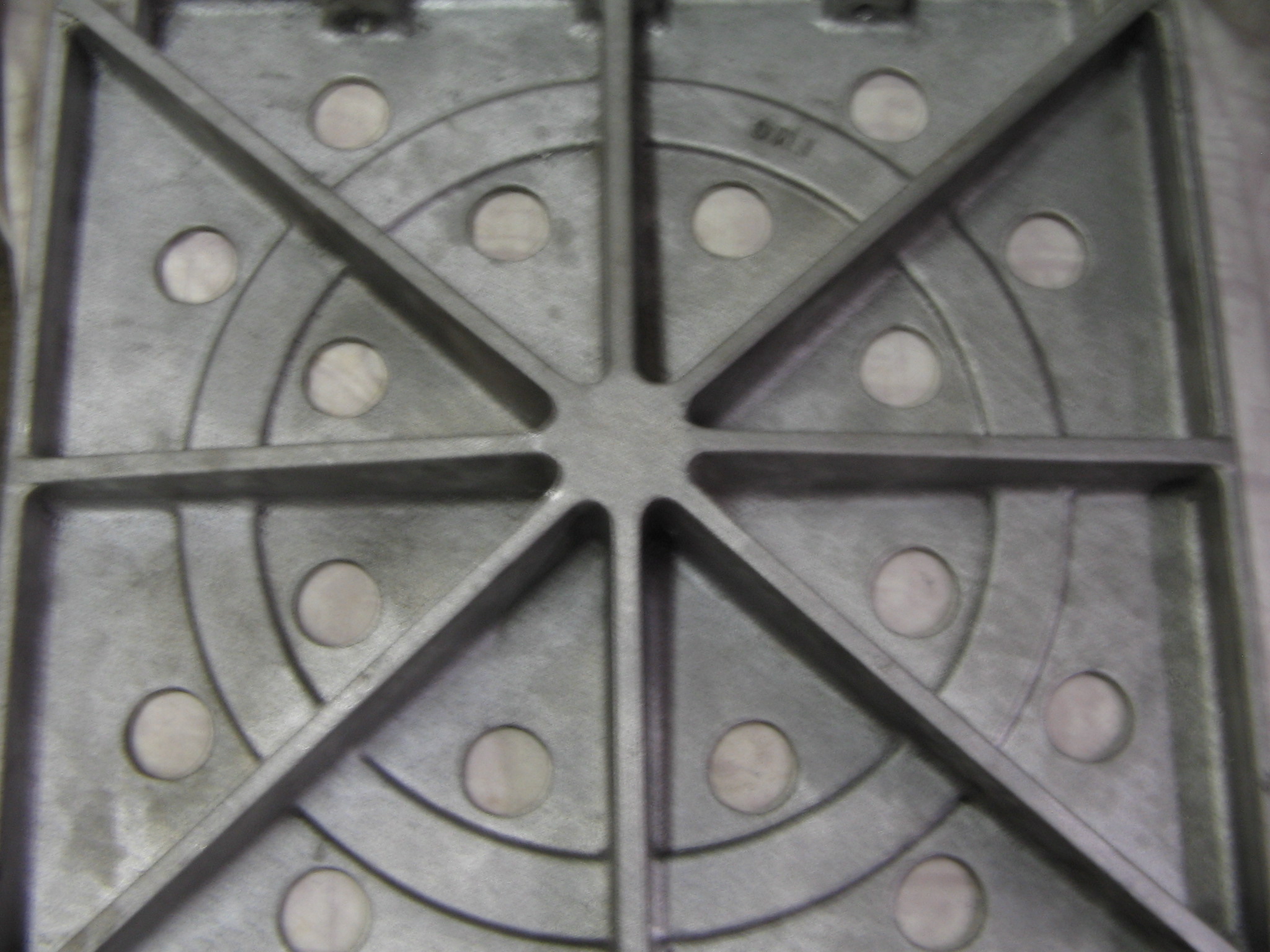

Can Holder Base(stm00315)

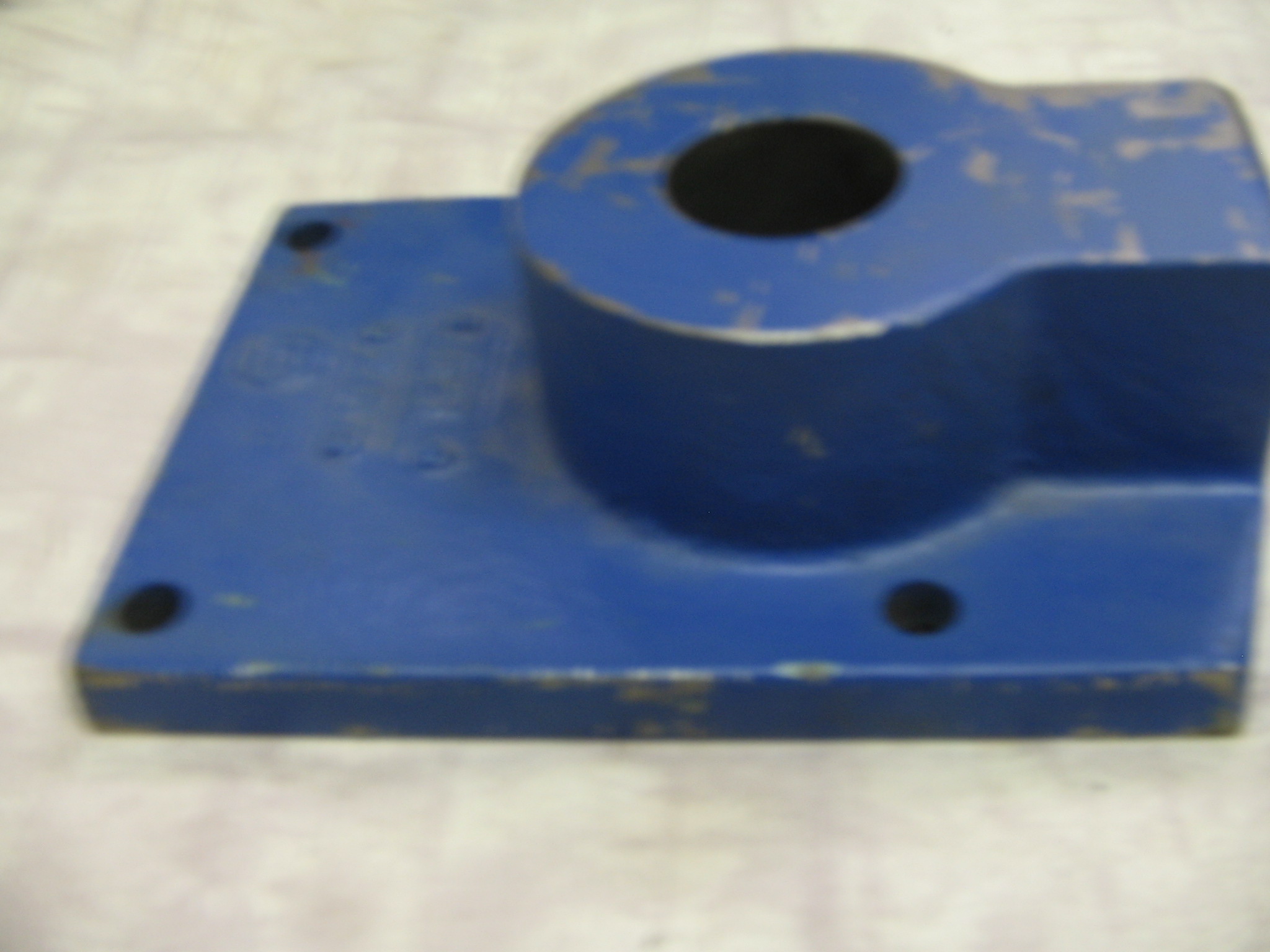

STM Outboard Support Plate

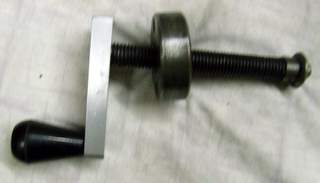

Clamp Screw w/Handle and Collar(stm80102)

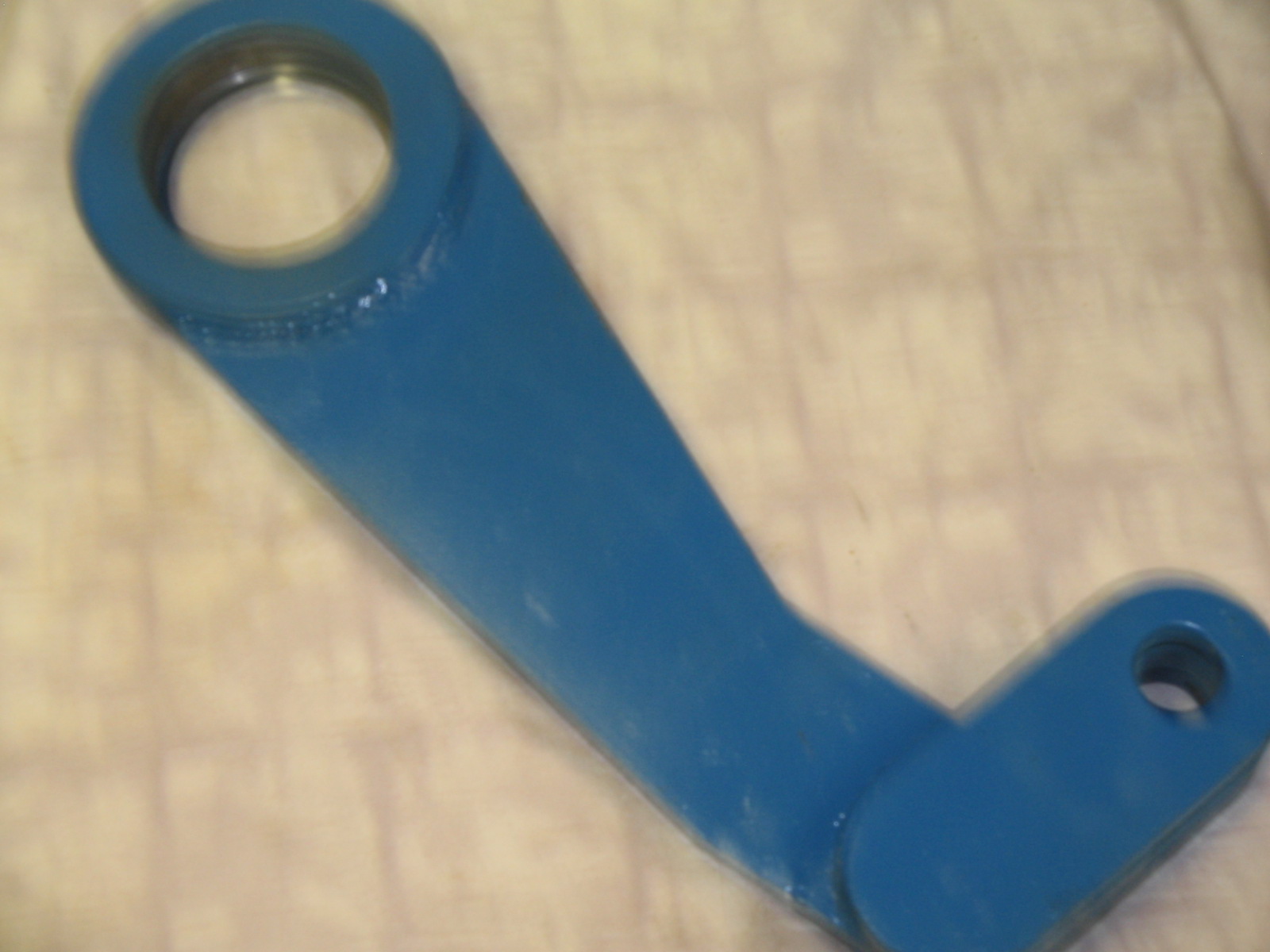

Connecting Rod(stm00803)

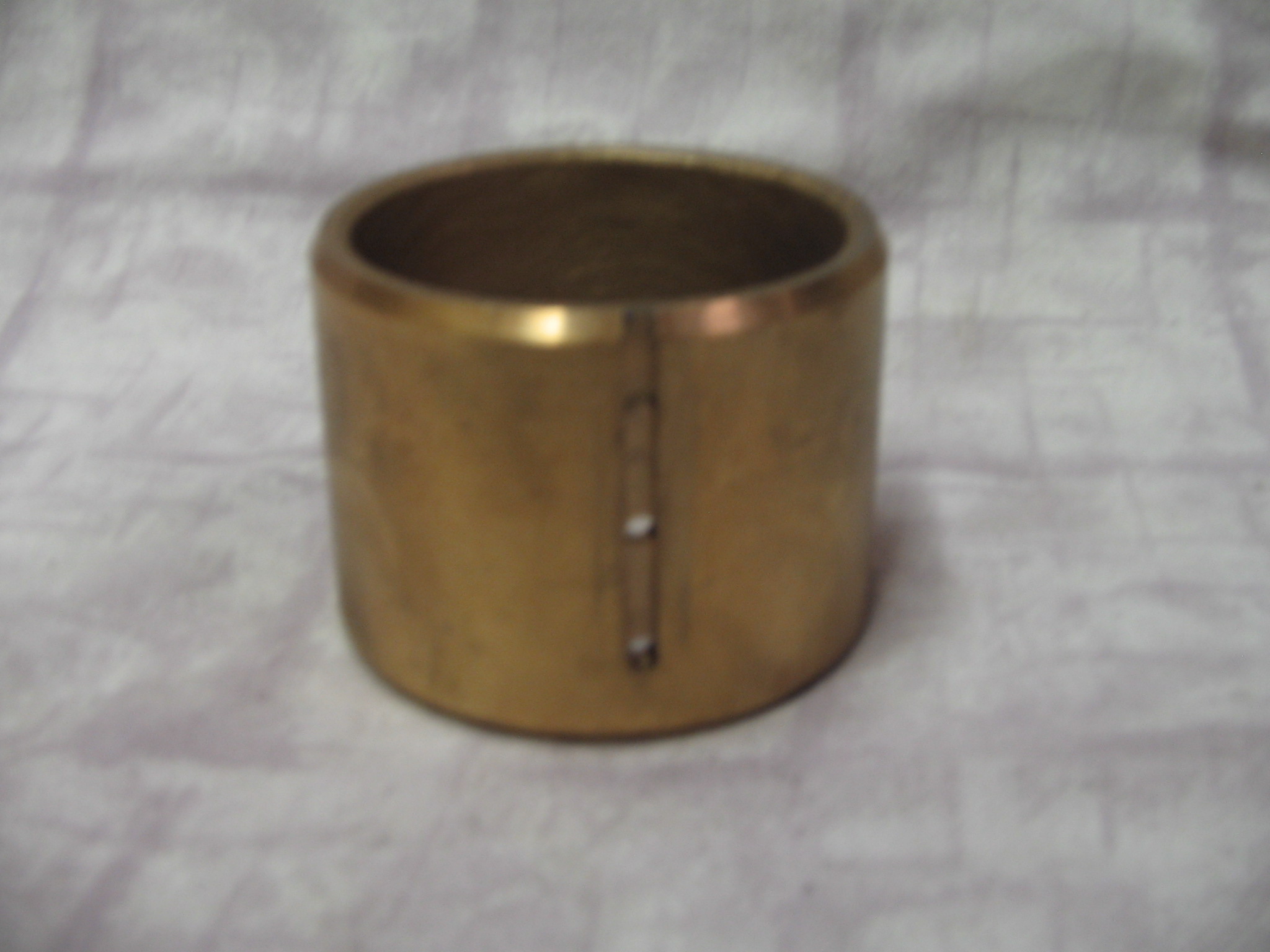

STM Sleeve Bearing(stm00811)

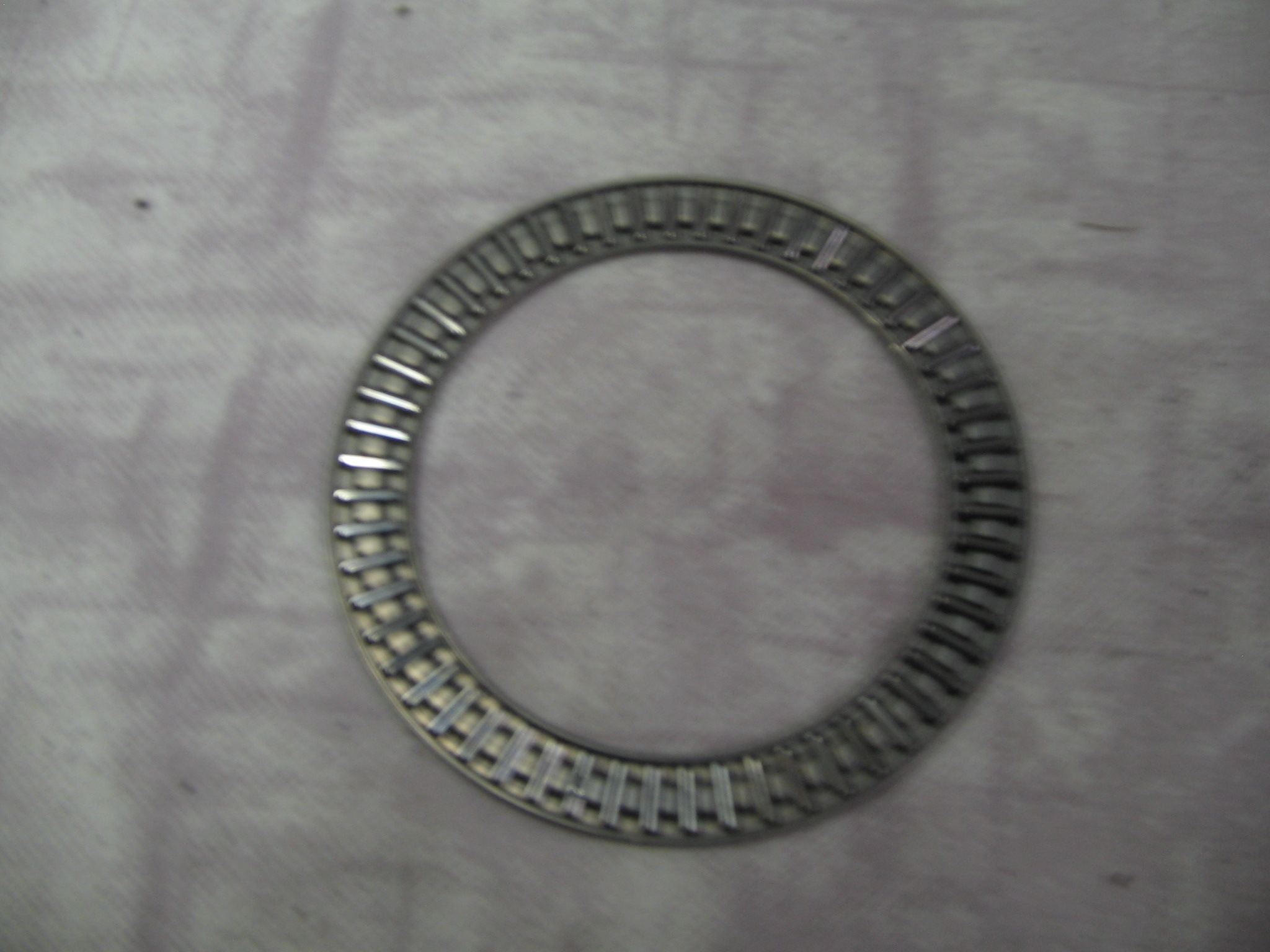

Needle Thrust Washer Bearing(stm00826)

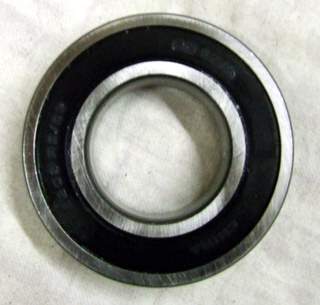

Connecting Rod Bearing(stm00813)

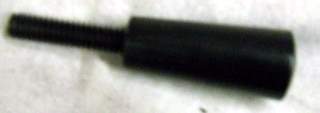

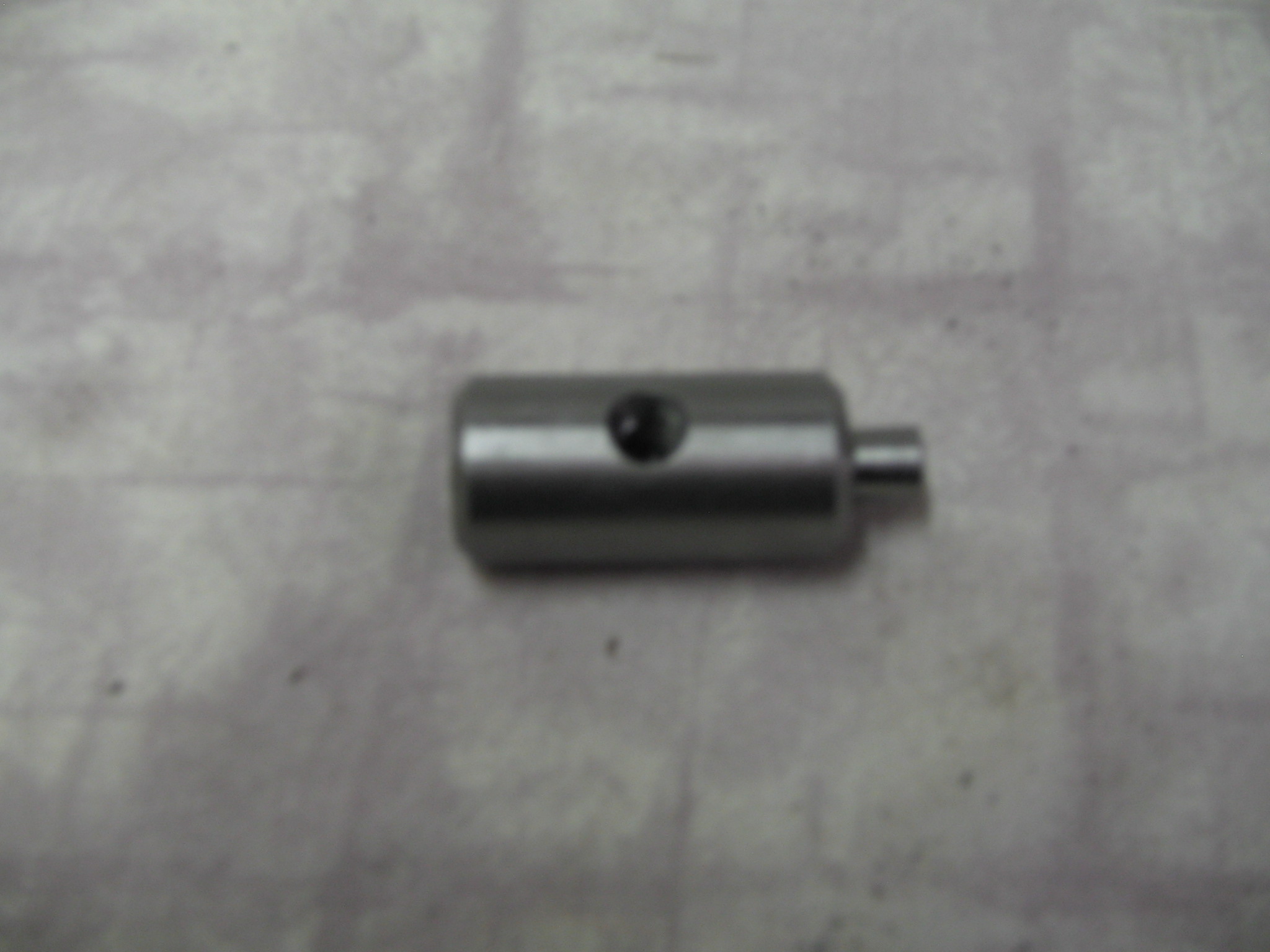

Locking Plunger Thumb Screw(stm00879)
