Harbil GQB and GQF Parts
Harbil GQB,GQF Part Numbers and Descriptions Below:
[Scroll to Find Harbil GQB,GQF Parts ]
GQ1007230 START SWITCH 4 PRONG
GQ1007232 ON/OFF SWITCH 4/94 AND LATER, 4 PRONG FM NEW #26040
GQ16249 1/3HP MOTOR
GQ23430 SHOCK MOUNT
GQ24678 GEAR DRIVE RETRO KIT
GQ24678IMC GEAR DRIVE RETRO KIT
GQ25090 QUART/PINT ADAPTER
GQ25090U QUART/PINT ADAPTER, USED
GQ3000059 BELT, OLD STYLE GQF
GQ30005005 30 DEGREE FRICTION DRIVE WHEEL
GQ3005000 TRANSMISSION ARM ONLY
GQ3005002 ARM BEARING
GQ3005008 MAIN DRIVE SHAFT
GQ3005009 WASHER SPACER
GQ3005010 RETAINER, FRICTION DRIVE WHEEL
GQ3005011 KEY FRICTION DRIVE WHEEL
GQ3005012 SPINDLE SHAFT
GQ3005015 15 DEGREE FRICTION DRIVE WHEEL
GQ3005103 COUNTER WEIGHT
GQ3006001 CLAMP, CAN LOCK
GQ3006103 SHAFT , CLAMP ROD
GQ3006104 SPRING, CLAMP SHAFT
GQ3006106-25090 QUART PINT ADAPTER NEW
GQ3006107 CLAMP SHAFT ASSEMBLY W/HANDLE
GQ3006199R TRANSMISSION ARM ASSEMBLY, REBUILT,WITH FRICTION DRIVE WHEEL
GQ3006205 WASHER, CAN CLAMP SPRING
GQ3007025 PULLEY, MOTOR
GQ3008002 TIMER PLATE
GQ3008003 SOLID STATE TIMER
GQ3008004 POTENTIOMETER, TIMER
GQ3008004EZ INTERMATIC 5 MINUTE TIMER
GQ3008005 KNOB, POTENTIOMETER
GQ3008005EZ EZ TIMER PLATE ASSEMBLY
GQ3008006 START SWITCH, OLD STYLE..3 PRONG 2/1/86 THRU 4/27/94
GQ3008008 ON/OFF SWITCH, OLD STYLE..3 PRONG 2/15/82 THRU 4/27/94
GQ3008008LC MAIN SHAFT LOCKING COLLAR
GQ3009003 FOOT ASSEMBLY
GQ3102000 COVER, GQB
GQ3102005 SHOULDER BOLT, GQB DOOR
GQ3207032 DRIVE BELT, GQB
GQ3900109 MAIN DRIVE SHAFT, OLD STYLE
GQ3900114 SPINDLE SHAFT, OLD STYLE
GQ4000010 WASHER
GQ4000076 SCREW 5/16-18 X 2-1/2'
GQ4000081 'SCREW, FRICTION DRIVE WHEEL..1/4-20 X 3/4 H.S.C.S.
GQ4000083 RETAINING RING 1
GQ4000084 CANHOLDER BASE SCREW..3/8'-16 X 1-1/4'
GQ4000085 KEY, WOODRUFF
GQ4000088 NUT, HEX, 5/16-18, C/Z
GQ4000089 NUT, HEX 5-16-18 ACORN, PLATED..
GQ4000090 LOCK WASHER CANLOCK..5/16' ID
GQ4000091 ROLL PIN, CLAMP SHAFT
GQ4000112 SAFETY SWITCH, GQB
GQ4000113 ENCLOSURE, DOOR SWITCH
GQ4000132 CLAMP SPRING WASHER..GQ 5/16' ID X 1/2' OD
GQ4000149 HANDLE
GQB/GQF LEVELERS3009003
H24129 TIMER ASSEMBLY WITH SWITCHES
H24188 HUB WITH SHAFTGEARS BEVEL
H24367 SPACER
H24371 MAIN DRIVE SHAFT
H24375 CAN
H24401 CONTROL PANEL WITH MECHANICAL TIMER
H24766 SCREW FLAT HEAD CAP
H4000158 FLANGE BOLT
Below are some pictures of popular parts that may help you identify your part.
To inquire about a part click on the picture.

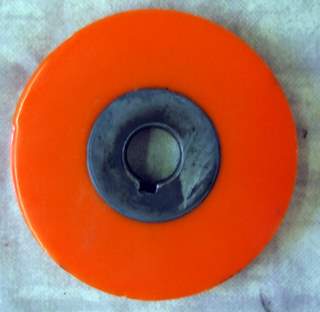

Inquire 15 Degree Friction Drive Wheel (GQ3005015)

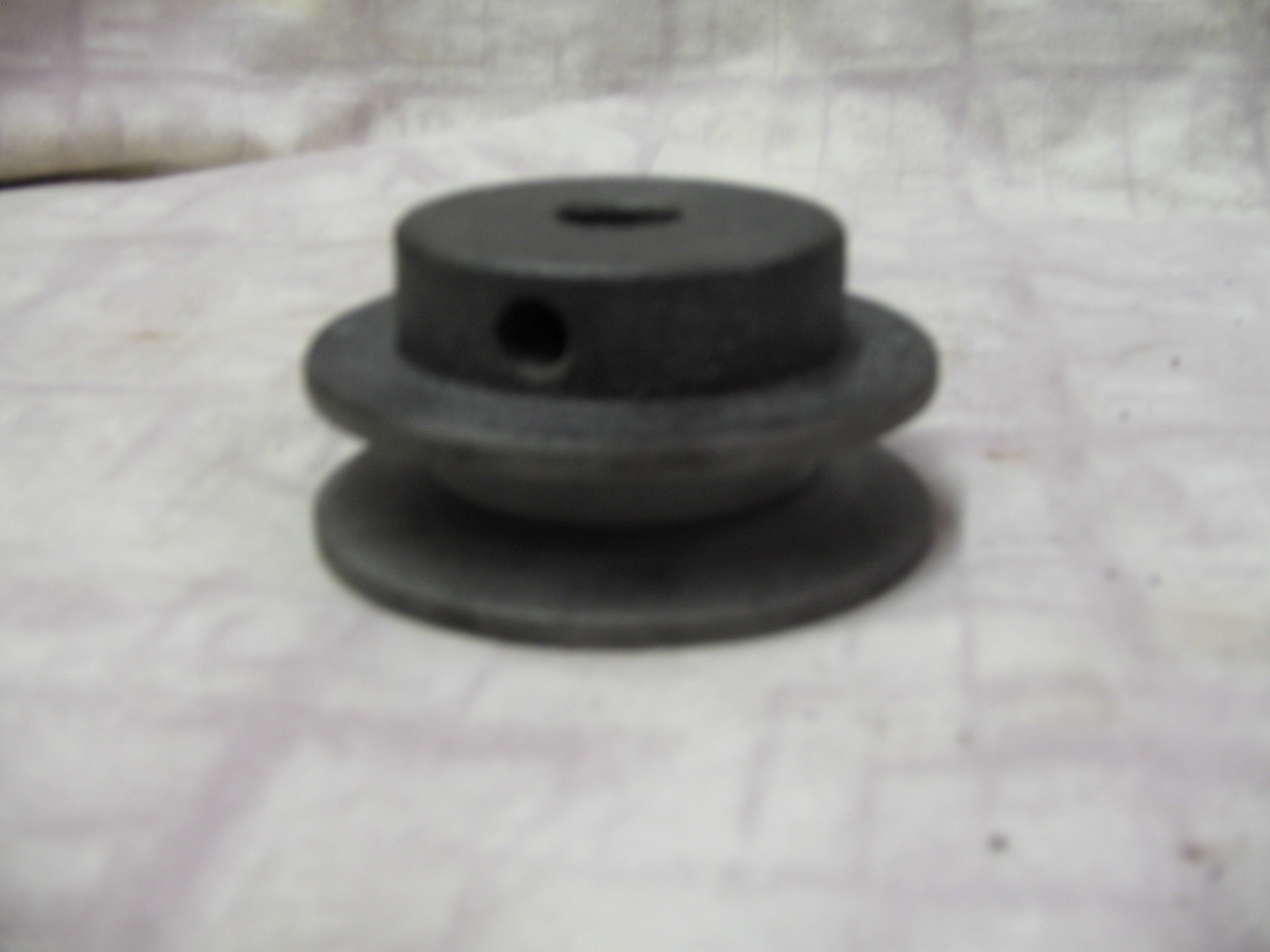

Inquire about a GQ Motor Pulley (GQ3007025)

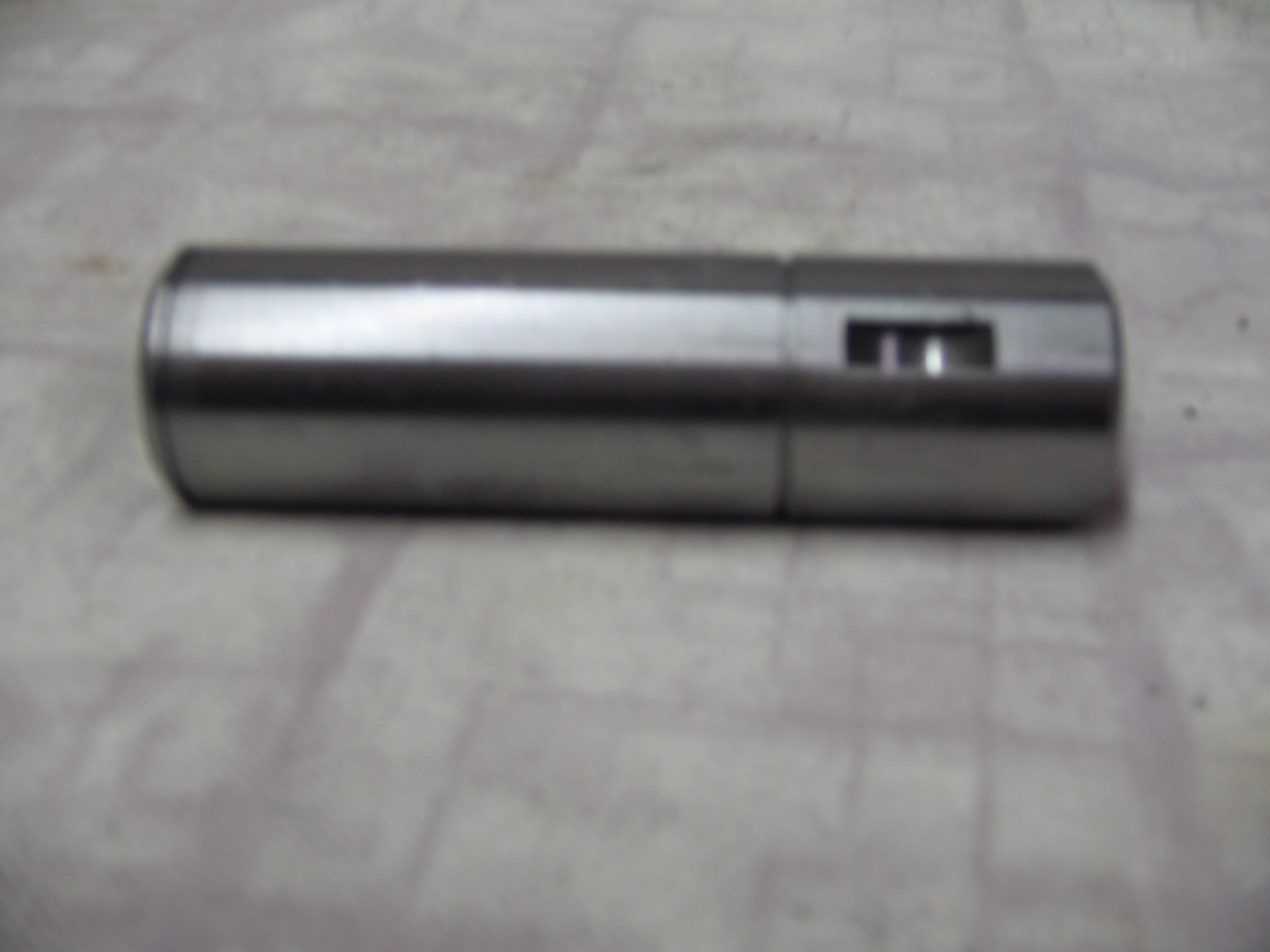

Inquire About a Spindle Shaft (New) GQ(GQ3005012)

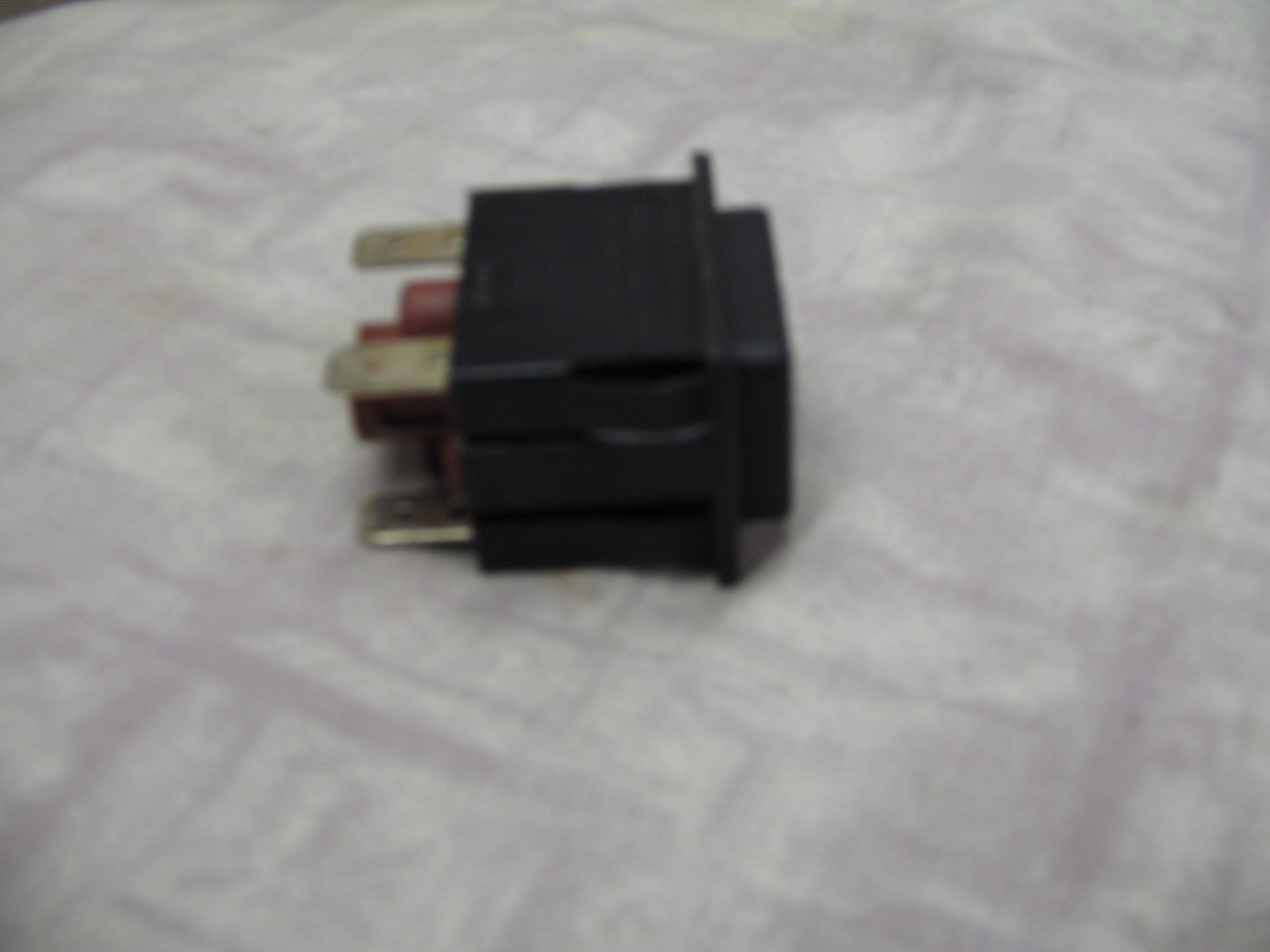

Inquire About a GQ Start Switch(GQ1007230)

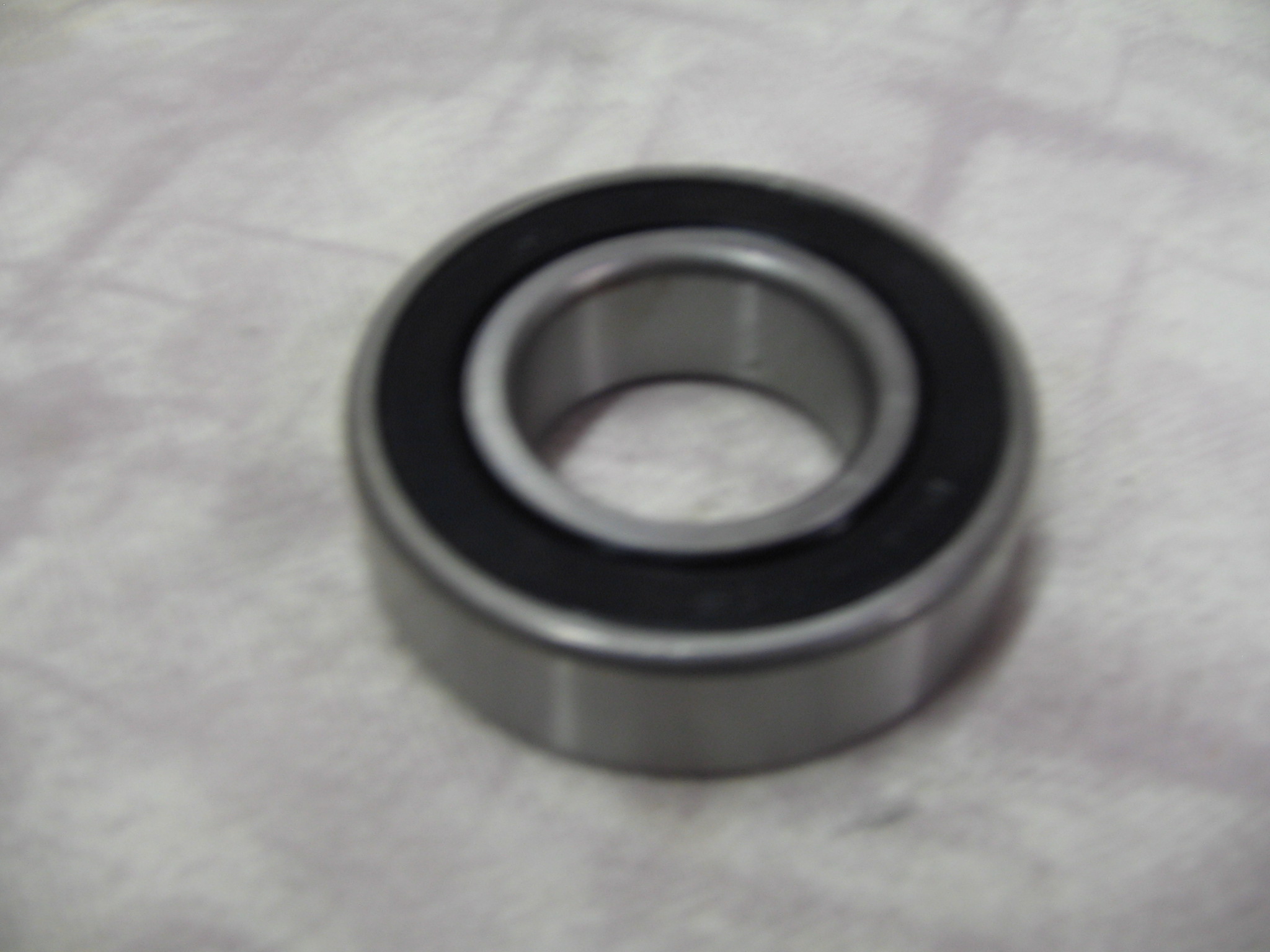

Inquire About a GQ Arm Bearing(GQ3005002)

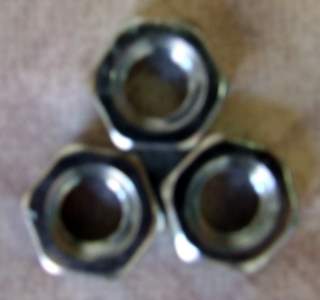

Inquire About Hex Jam Nuts GR 2 Zinc PL(GQ400088)

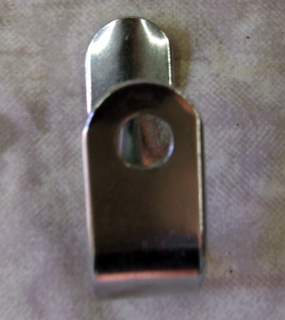

Inquire About a Can Clamp Handel (GQ3006002)

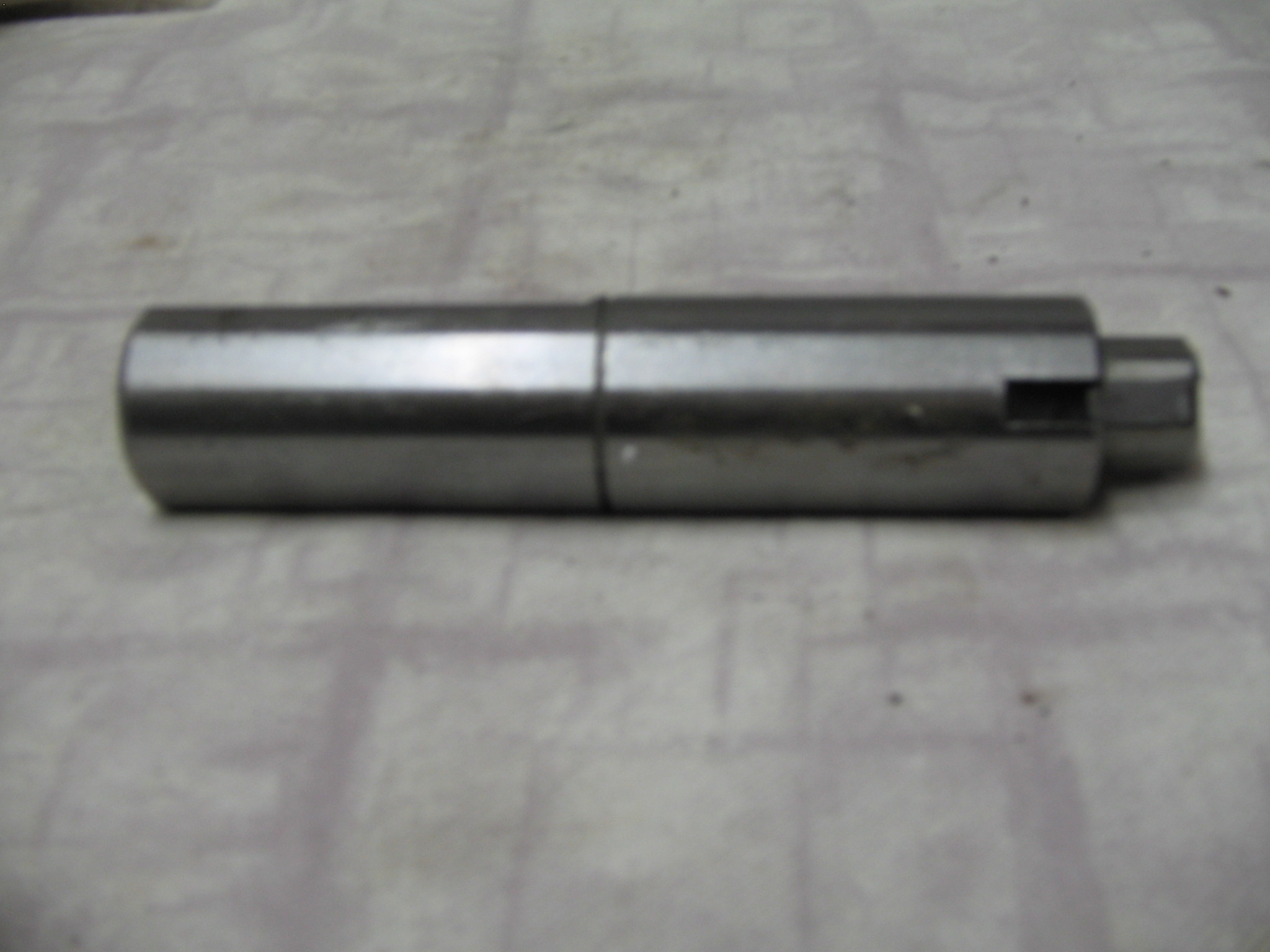

Inquire About a GQ Main Drive Shaft(GQ3005008)

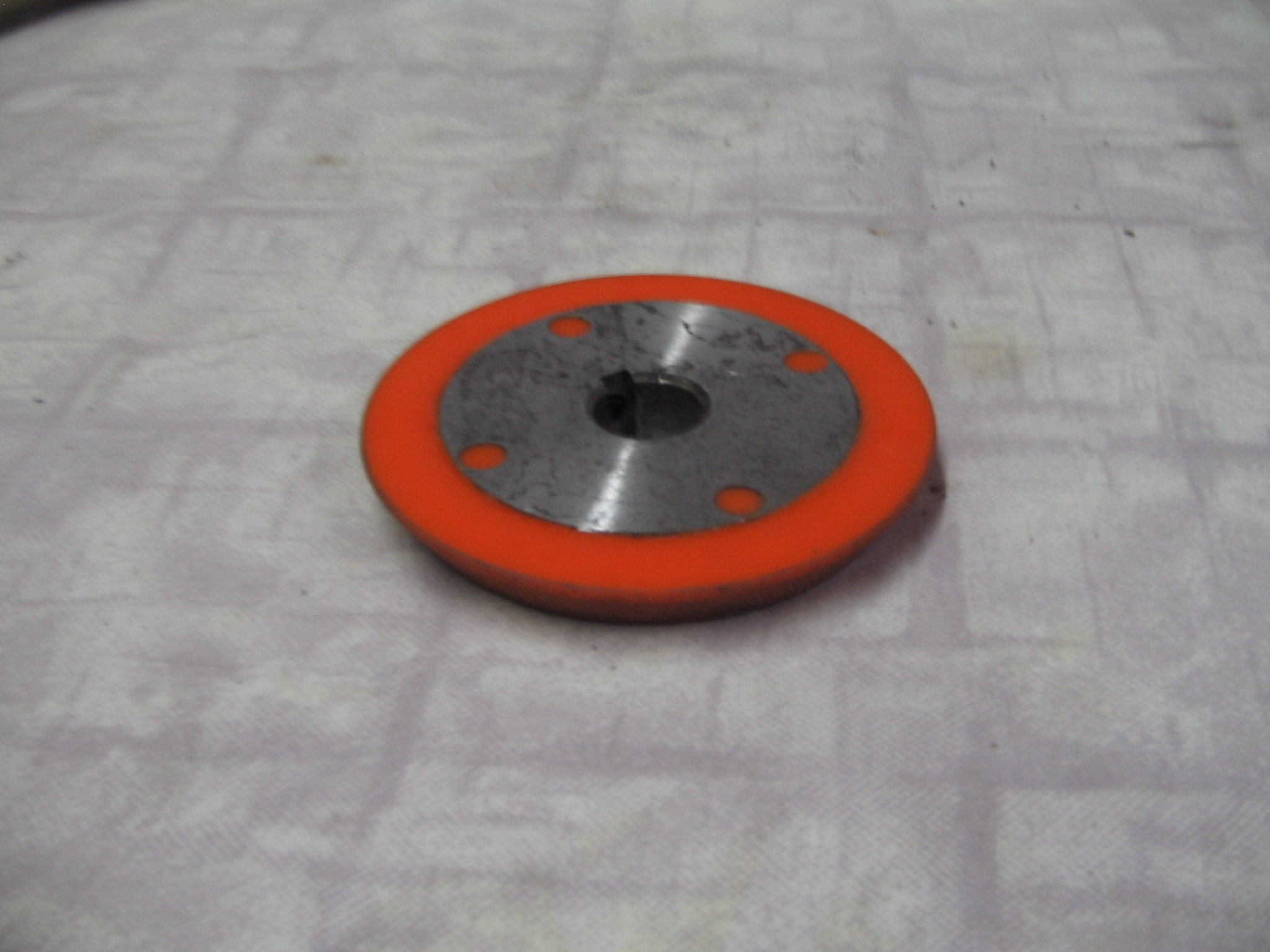

Inquire About a 30 degree drive wheel (GQ30005005)

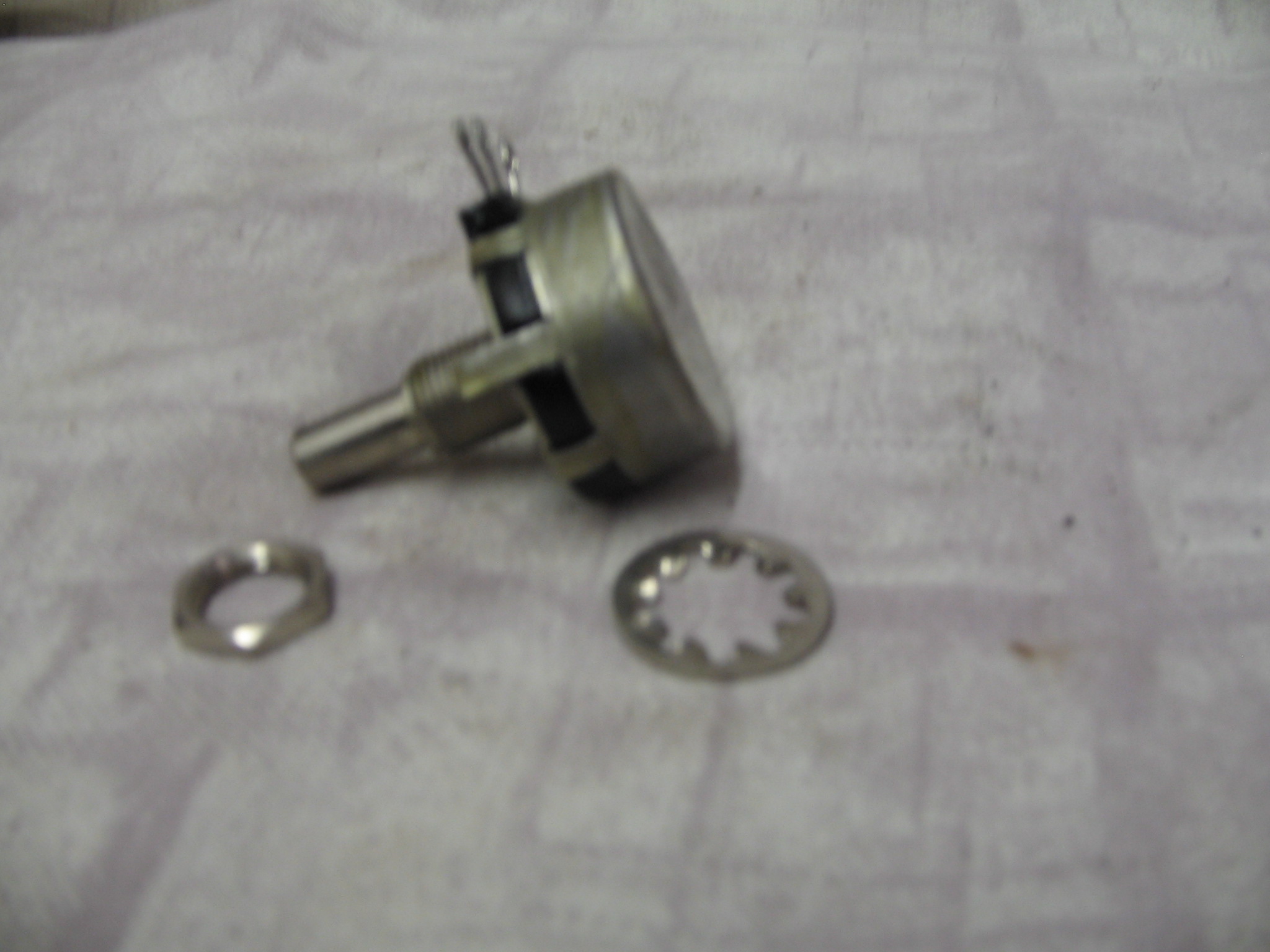

Inquire About a Potentiometer(GQ3008004)
Inquire About 5/16-18 ACORD's (GQ4000089)
Inquire About a Can Rod (GQ3006103)

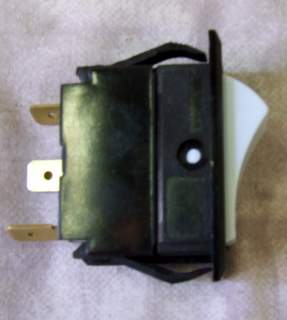

Inquire About an On/Off Switch(GQ3008008)

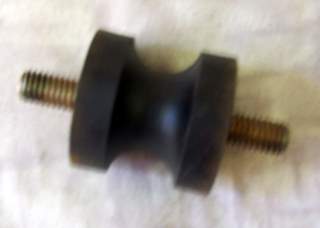

Inquire About a Shock Mount (GQ3010401)

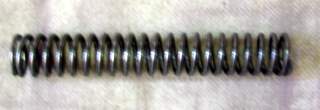

Inquire About a Spring For the Rod (GQ3006104)

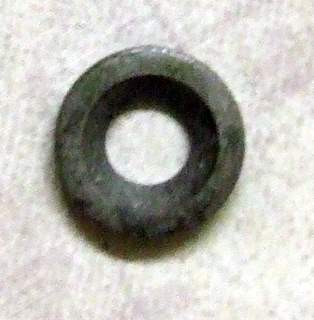

Retainer for Friction Drive Wheel(GQ3005012)
